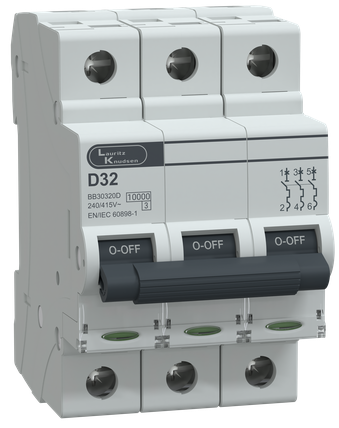

MCB TP 32A D-Curve 10kA

Rs. 2,080.00 + 18% GST Rs. 4,500.00
54
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: BB30320D
Visa Mastercard American Express UPI
General
Short Description
MCB TP 32A D-Curve 10kA
Conformity to Standard
IS/IEC 60898-1
Poles
3P
Frame
3 Module
Electrical Characteristics
Operational Frequency (Hz)
50Hz/ 60Hz
Rated breaking capacity
10kA as per IS/IEC 60898-1
Rated impulse withstand voltage (Uimp)
4kV
Rated insulation voltage (Ui)
500VAC
Rated operational voltage (Ue)
415VAC
Tripping Characteristic
D Curve (10-20In)
Mounting positions
Horizontal/Vertical/Flat
Termination capacity
35 mm2 (Rigid) 25 mm2 (Flexible)
Environmental Conditions
Ambient temperature
-25 ËšC to 70 ËšC
IP Rating
IP20
Features
Mounting positions
Horizontal/Vertical/Flat
Mounting
Snap fixing on standard profile 35 X 7.5mm DIN-Rail as per EN 50022
Mounting
Snap fixing on standard profile 35 X 7.5mm DIN-Rail as per EN 50022
Mounting positions
Horizontal/Vertical/Flat
Life
Electrical life-Operating Cycles
20,000
Mechanical life-Operating Cycles
1,00,000
Vendor INDUSWELL
Type Industrial & Scientific
Sku BB30320D
Weight 0.45 kg
