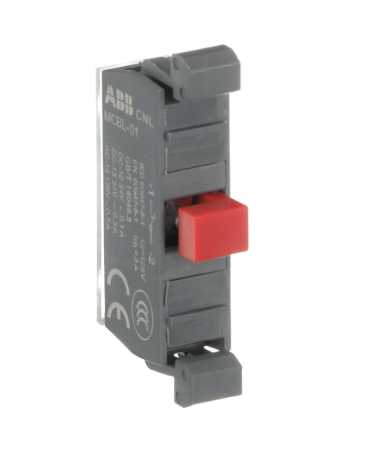

MCBL-01

Rs. 803.00 + 18% GST Rs. 1,600.00
50
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: 1SFA611612R1001
Visa Mastercard American Express UPI

Ordering

Minimum Order Quantity:
10 piece
Customs Tariff Number:
8536901000

Dimensions

Product Net Width:
0.01 m
Product Net Height:
0.044 m
Product Net Depth / Length:
0.015 m
Product Net Weight:
0.01 kg

Technical

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Illumination:
Non-illuminated
Function:
Without holder
Mounting Type:
Front mounting
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
0
Pollution Degree:
3
Rated Insulation Voltage (Ui):
125 V
Rated Frequency (f):
50 / 60 Hz
Rated Operational Voltage:
Maximum 125 V
Rated Operational Current DC-13 (Ie):
(24 V) 0.3 A
Power Loss:
Maximum 0.45 W
Connecting Capacity:
Flexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection Type:
Screw Clamp
Terminal Type:
Screw Terminals
Tightening Torque:
0.8 N·m
Wire Stripping Length:
6 mm
Suitable For:
MP1
MP2
MP3
MP4
MPD1
MPD2
MPD3
MPD4
MPD5
MPD11
Suitable for Product Class:
Pilot Devices

Technical UL/CSA

Connecting Capacity UL/CSA:
1x 22...14 AWG
2x 22...14 AWG

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Declaration:
RoHS Information:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA:
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Units:
bag 10 piece
Package Level 1 Width:
0.11 m
Package Level 1 Depth / Length:
0.15 m
Package Level 1 Height:
0.01 m
Package Level 1 Gross Weight:
0.1 kg
Package Level 1 EAN:
7320500359938

External Classifications and Standards

Object Classification Code:
S
ETIM 6:
EC000041 - Auxiliary contact block
ETIM 7:
EC000041 - Auxiliary contact block
ETIM 8:
EC000041 - Auxiliary contact block
eClass:
V11.0 : 27371302
UNSPSC:
39122221
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
E-Number (Finland):
2315867
E-Number (Sweden):
3705014
Vendor INDUSWELL
Type Industrial & Scientific
Sku 1SFA611612R1001
Weight 0.01 kg
