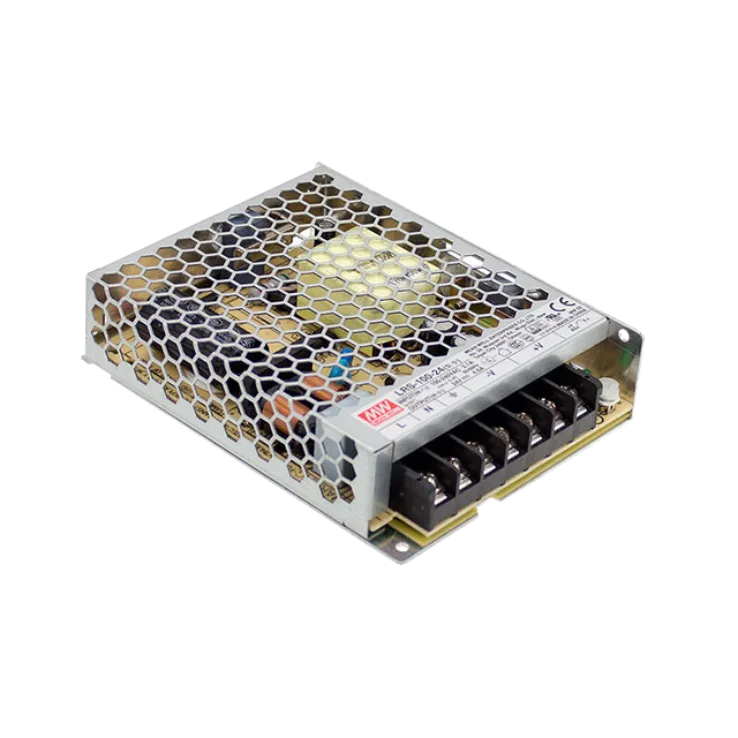

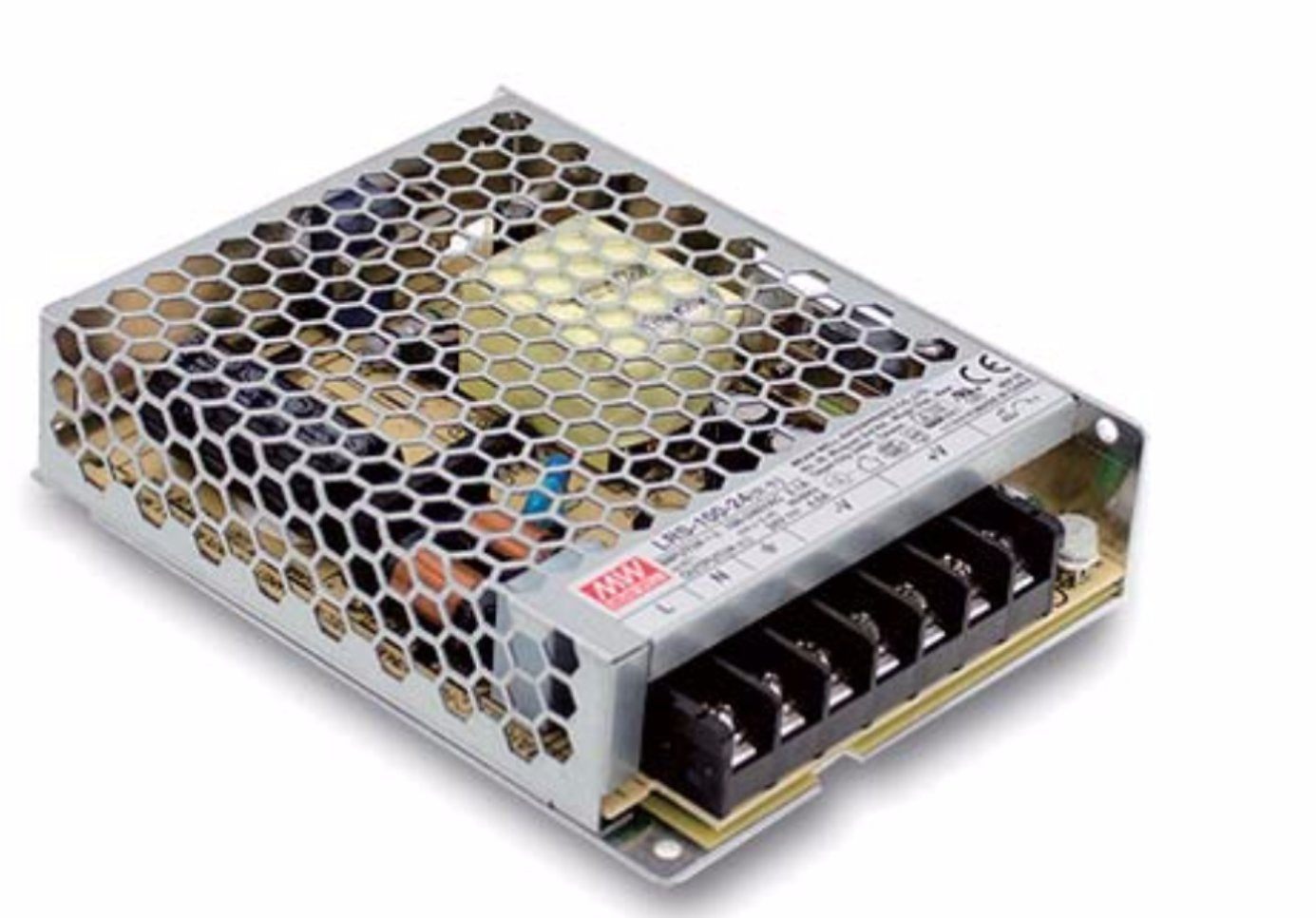

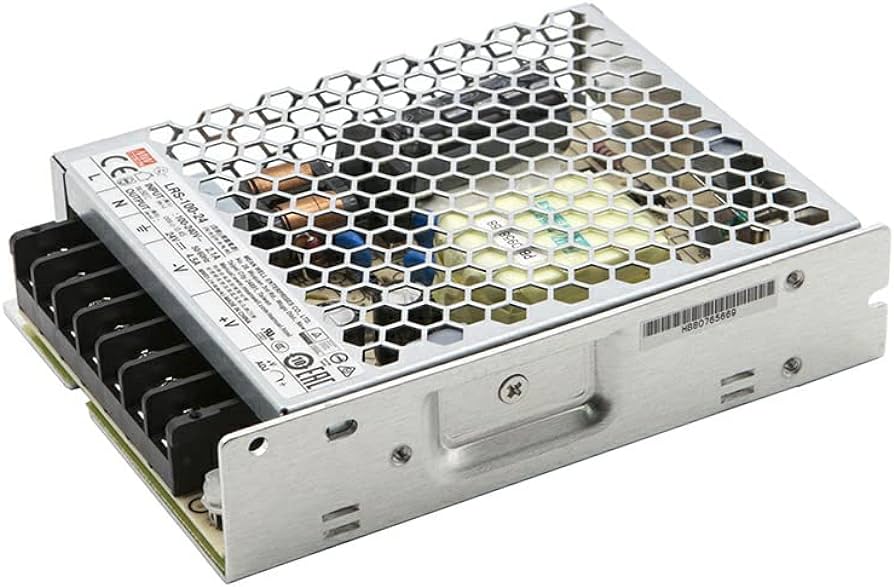

Meanwell SMPS LRS-100-24 , 24 Volt 4.5 Amp Power Supply

Rs. 1,120.00 + 18% GST Rs. 1,710.80
35
Style: Standard
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Visa Mastercard American Express UPI

MEAN WELL LRS-100 Single Output Switching Power Supplies

MEAN WELL LRS-100 Single Output Switching Power Supplies are 100W enclosed-type power supplies with a 30mm low-profile design. With a full 85VAC to 264VAC input range, the LRS-100 power supplies provide an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V, and 48V. In addition to the high efficiency of up to 91%, the metallic mesh case enhances heat dissipation in an operating temperature range of -30°C to +70°C under air convection without a fan. Delivering a low no-load power consumption (less than 0.3W), the end system meets worldwide energy requirements.

Features

  • Universal AC input/full range
  • Withstands 300VAC surge input for 5s
  • Protections
    • Short circuit
    • Overload
    • Overvoltage
  • Cooling by free air convection
  • Miniature size and 1U low profile
  • Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances
  • Operating altitude up to 5000 meters
  • Withstands 5G vibration test
  • LED indicator for power on
  • No-load power consumption of <0.3W
  • 100% full load burn-in test
  • High operating temperature up to +70°C
  • High efficiency, long life, and high reliability
  • 3-year warranty

Applications

  • Industrial automation machinery
  • Industrial control systems
  • Mechanical and electrical equipment
  • Electronic instruments, equipment, or apparatus
  • Household appliances

Specifications

  • Output
    • 3.3VDC to 48VDC voltage range
    • 23A to 20A rated current range
    • 66W to 110.4W rated power range
  • Input
    • Voltage ranges
      • 85VAC to 264VAC
      • 120VDC to 373VDC
    • 47Hz to 63Hz frequency range
    • 84.5% to 91% efficiency range
    • AC currents
      • 1.9A/115VAC
      • 1.2A/230VAC
    • <0.75mA/240VAC leakage current
  • 129mm x 97mm x 30mm in dimension
  • Environmental
    • Temperature ranges
      • -30°C to +70°C operating
      • -40°C to +85°C storage
    • Humidity
      • 20% to 90% working RH, non-condensing
      • 10% to 95% storage RH
    • ±0.03%/°C temperature coefficient (0 to +50°C)
    • Vibration: 10Hz to 500Hz, 5G 10min./1 cycle, 60min. each along the X, Y, and Z axes

Block Diagram

Block Diagram - MEAN WELL LRS-100 Single Output Switching Power Supplies
