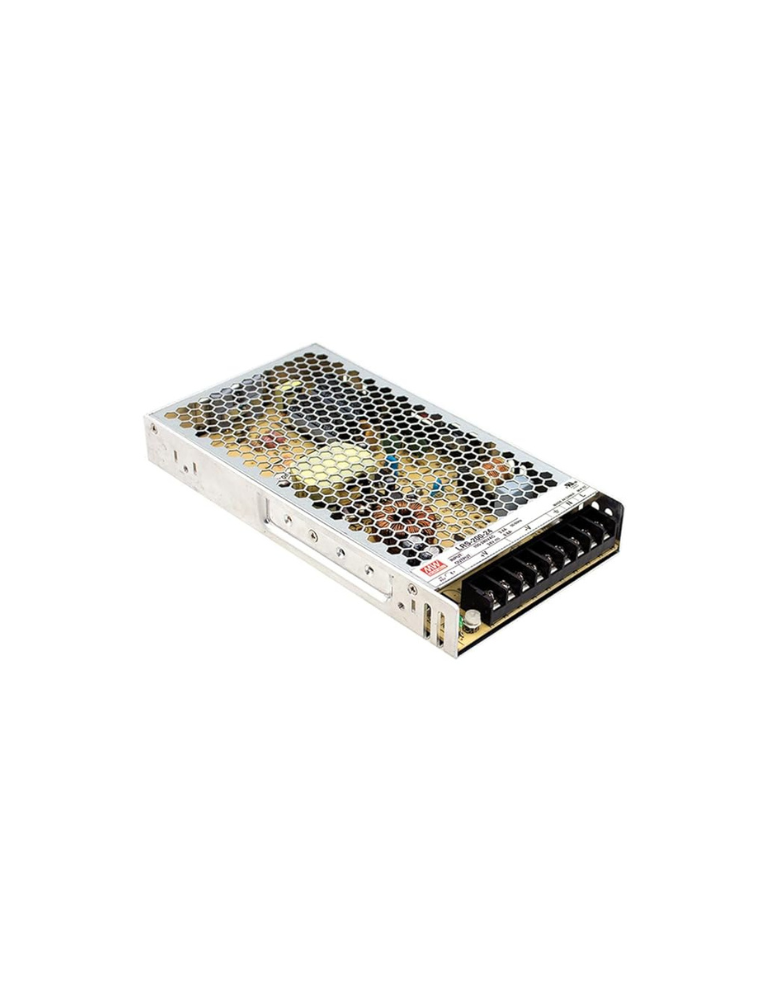

Meanwell Switching Power Supply LRS-200-24 AC-DC 24V 8.8A 90 132VAC 180 264VAC by Switch Mean Well LRS Series Transformer 24VDC

Rs. 1,960.00 + 18% GST Rs. 2,999.00
35
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: INDMEN LRS-200-24
Visa Mastercard American Express UPI
Usage/Application
Industrial Automation / Controll Panel / LED Light
Input Voltage Range
90 - 132VAC / 180 -264VAC By Switch & 240 - 370VDC (Switch On 230VAC)
Part Number
LRS-200-24
Mounting Type
Panel Mount / Enclosed
Efficiency
89.5%
Output Voltage
24VDC
Design
Smps
Output Current
8.8 Amp
Series
LRS-200
Input Current
4A/115VAC & 2.2A/230VAC
Output Type
Single
Warranty
3 Years
Weight
0.66 Kg
Dimensions
215 x 115 x 30mm (L x W x H)
Mtbf
347.5K hrs min. MIL-HDBK-217F (25 Deg C)
Output Power
200 Watt
Working Humidity
20 - 90% RH Non-Condensing
Protection
Short Circuit / Overload / Over Voltage / Over Temperature
Brand
Meanwell
Input Frequency
47 - 63Hz
Storage Temperature
-40 to +85 Deg C & 10 - 95% RH Non-Condensing
Working Temp.
-25 to +70 Deg C
Adjustable Voltage
21.6 - 28.8VDC
Phase
Single Phase
Certifications
CE / CB / EAC / CQC
Ripple And Noise
150mVp-p
Vendor INDUSWELL
Type Industrial & Scientific
Sku INDMEN LRS-200-24
Weight 0.77 kg
