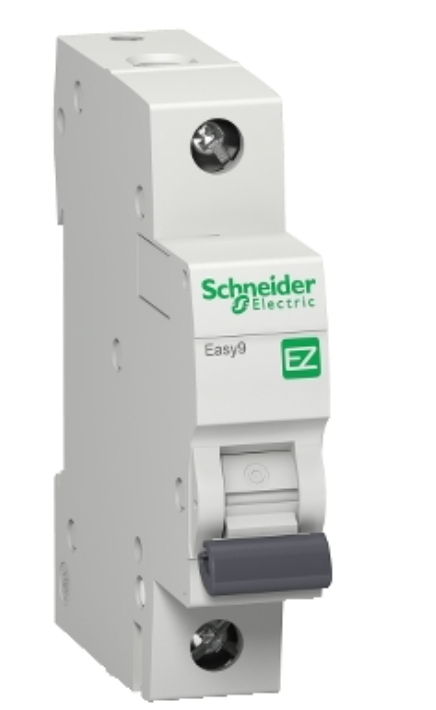

Miniature circuit breaker, Easy9, 1P, 32 A, C curve, 10000 A

Rs. 411.00 + 18% GST Rs. 822.00
50
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: EZ9F71132
Visa Mastercard American Express UPI
Main
Range Easy9
Device application Distribution
Product or component type Miniature circuit-breaker
Device short name Easy9 MCB
Poles 1P
Number of protected poles 1
[In] rated current 32 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 10000 A Icn at 240 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolation Yes conforming to IEC 60898-1
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 240 V AC 50/60 Hz
Magnetic tripping limit 5...10 x In
[Ics] rated service breaking capacity 10 kA 75 % x Icn at 240 V AC 50/60 Hz conforming to IEC 60898-1
Limitation class 3 conforming to IEC 60898-1
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1
Contact position indicator Yes
Control type Toggle
Local signalling Without
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 2
Height 81 mm
Width 18 mm
Depth 77.5 mm
Net weight 0.115 kg
Colour Grey (RAL 7035)
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² rigid
Tunnel type terminal (top or bottom) 1…16 mm² flexible
Tightening torque 2 N.m top or bottom
Environment
Standards IEC 60898-1
Product certifications CE
ISI
IP degree of protection IP20 conforming to IEC 60529
Pollution degree 2
Tropicalisation 2
Relative humidity 95 % at -5…55 °C
Ambient air temperature for operation -5…55 °C
Ambient air temperature for storage -25…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8 cm
Package 1 Width 2 cm
Package 1 Length 9 cm
Package 1 Weight 131 g
Unit Type of Package 2 S03
Number of Units in Package 2 144
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 18.864 kg
Contractual warranty
Warranty (in months) 18

Vendor INDUSWELL
Type Industrial & Scientific
Sku EZ9F71132
Weight 0.115 kg
