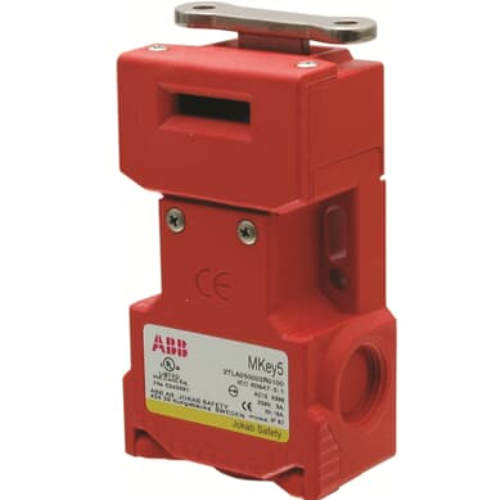

MKey5

Rs. 8,430.00 + 18% GST Rs. 16,000.00
47
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 2TLA050003R0100
Visa Mastercard American Express UPI
Minimum Order Quantity:
1 piece
Customs Tariff Number:
8536500700
Product Main Type:
MKey
Product Name:
Safety Sensors, Switches and Locks
Function:
Safety mechanical switch for interlocking

Popular Downloads

Data Sheet, Technical Information:
CAD Dimensional Drawing:

Installation

Instructions and Manuals:

Dimensions

Product Net Depth / Length:
34 mm
Product Net Height:
98 mm
Product Net Width:
58 mm
Product Net Weight:
0.13 kg

Safety Information

Performance Level (PL):
Up to e
Safety Integrity Level (SIL):
1
2
3
B10d Value:
Operations at 100 mA Load 2.5 million

Technical

Number of Contacts NC:
2
Number of Contacts NO:
1

Environmental

Ambient Air Temperature:
Operation -25 ... 80 °C
Degree of Protection:
IP67
Material:
Plastic

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Declaration:
RoHS Information:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CCC:
Declaration of Conformity - CE:
Declaration of Conformity - UKCA:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
65 mm
Package Level 1 Depth / Length:
150 mm
Package Level 1 Height:
40 mm
Package Level 1 Gross Weight:
0.205 kg
Package Level 1 EAN:
7350024466232

External Classifications and Standards

eClass:
V11.0 : 27270610
ETIM 7:
EC002592 - Position switch with separate actuator
ETIM 8:
EC002592 - Position switch with separate actuator
ETIM 9:
EC002592 - Position switch with separate actuator
Object Classification Code:
B
E-Number (Finland):
2307345
E-Number (Sweden):
3860199
Vendor INDUSWELL
Type Industrial & Scientific
Sku 2TLA050003R0100
Weight 0.13 kg
