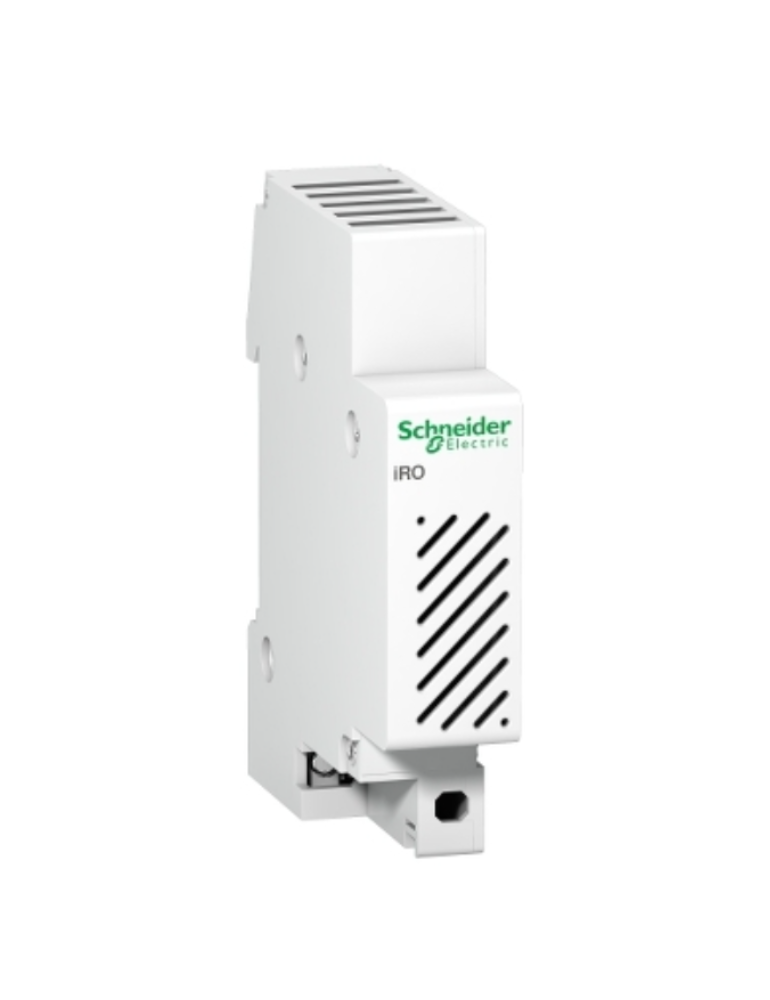

modular buzzer iRO - 230 V 50/60Hz - 70 dB

Rs. 2,852.00 + 18% GST Rs. 4,000.00
29
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: A9A15322
Visa Mastercard American Express UPI
Main
range of product Acti9
Product name Acti9 iRO
Product or component type Buzzer
Device short name iRO
Complementary
[Us] rated supply voltage 230 V AC at 50/60 Hz
Power consumption in VA 5 VA
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 2
Height 81 mm
Width 18 mm
Depth 72 mm
Product weight 64 g
Colour White
Auxiliary connection terminal Tunnel type terminalsrigid 4 mm²
Tunnel type terminalsflexible 4 mm²
Tunnel type terminalsflexible with ferrule 4 mm²
Wire stripping length 12 mm for bottom connection
Tightening torque 1.3 N.m
Environment
Noise level 70 dB
Type of sound Buzzer
IP degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation -10…40 °C
Ambient air temperature for storage -25…60 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.800 cm
Package 1 Width 6.600 cm
Package 1 Length 8.200 cm
Package 1 Weight 55.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 12
Package 2 Height 8.300 cm
Package 2 Width 10.000 cm
Package 2 Length 22.800 cm
Package 2 Weight 741.000 g
Unit Type of Package 3 S03
Number of Units in Package 3 144
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 9.670 kg
Logistical informations
Country of origin IN
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku A9A15322
Weight 0.5 kg
