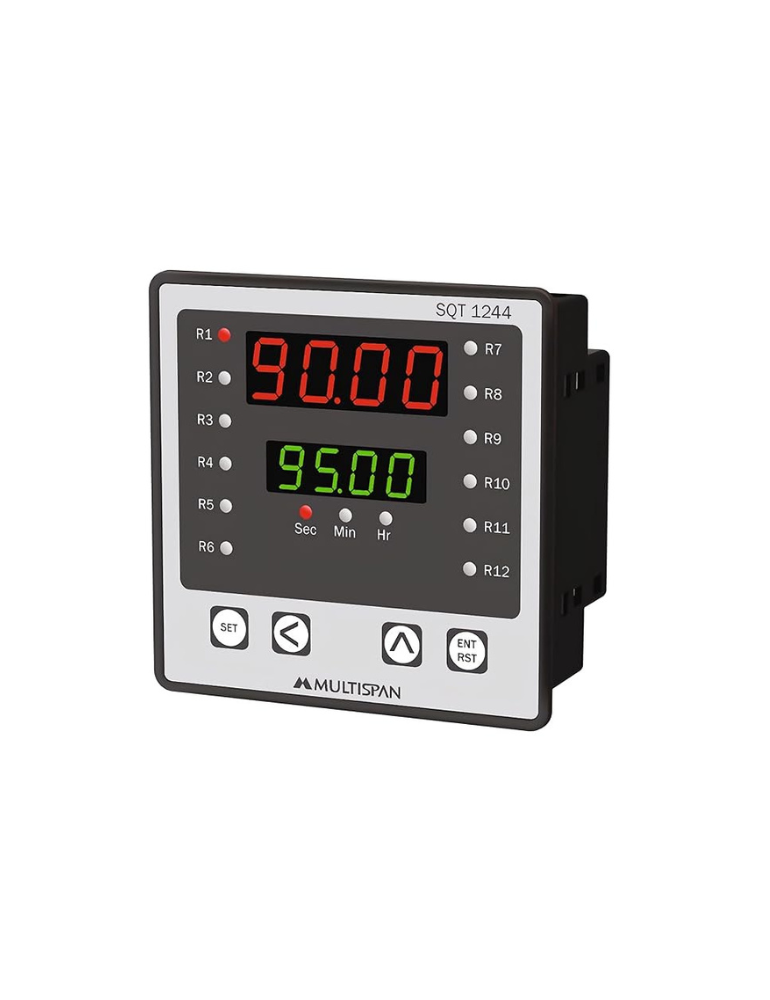

Multispan SQT-1244 12-Channel Programmable Sequential Timer

Rs. 6,120.00 + 18% GST Rs. 6,999.00
13
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: INDMUSQT-1244
Visa Mastercard American Express UPI

About this item

  • INPUT : 99.99 Sec/ 999.9 Sec/ 99.59 Min/ 99.59 Hrs/999.9 Hrs/ 999.9 Min ( Configurable )
  • OUTPUT : 12 Relay 1/O 5A, 230V AC ( Resistive Load ) or SSR Drive O/P 24V DC, 20mA Output ( Any One Factory Set )
  • OPERATION MODE : Delayed On ,Cycle Timer ,Delayed Off , COUNT DIRECTION : UP/ Down ( Configurable ) , MEMORY : YES/ NO ( Configurable ) , RESET : Front & Back Both Reset Available
  • SUPPLY : 100-270V AC ( SMPS ), 50/60Hz
  • DIMENSION ( HxWxD )mm : 96x96x54, PANEL CUTOUT : 92x92mm
Vendor INDUSWELL
Type Industrial & Scientific
Sku INDMUSQT-1244
Weight 0.45 kg
