| range of product | Acti9 |
|---|---|

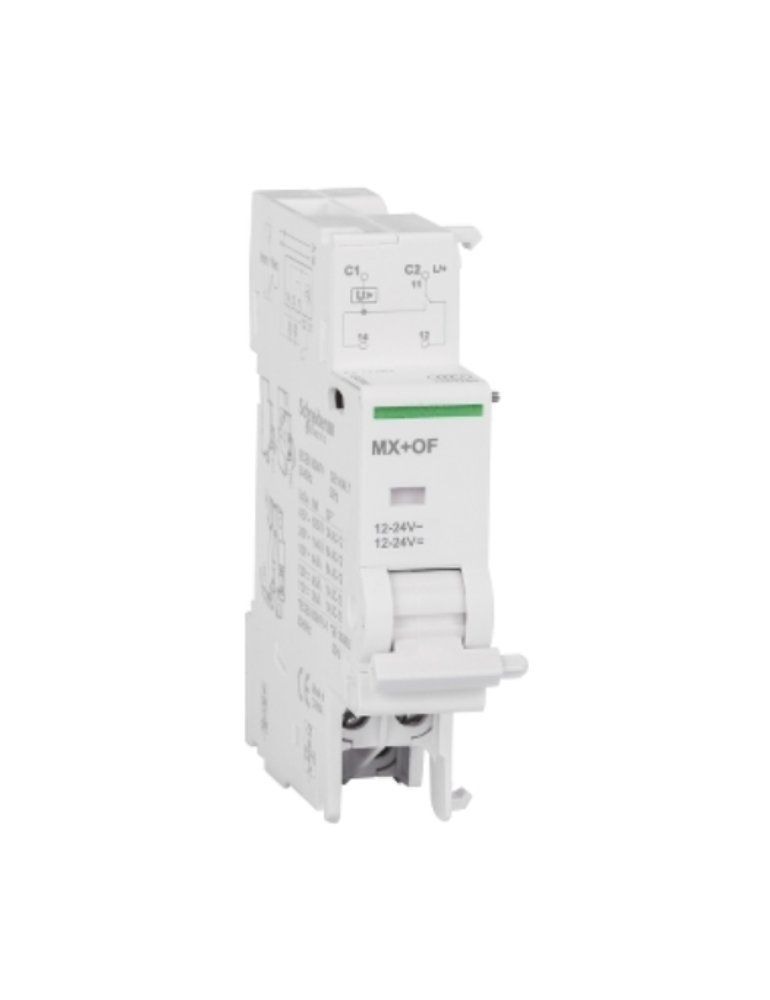

| Product or component type | Shunt trip release with OC contact |
| Device short name | MX + OF |
| Signal contacts composition | 1 C/O |
| [Uc] control circuit voltage | 12...24 V AC 50/60 Hz 12...24 V DC |
| 9 mm pitches | 2 |
| Range compatibility | Acti9 iDPN Acti9 C120 Acti9 C40 Acti9 C60H-DC Acti9 C60NA-DC Acti9 C60PV-DC Acti9 DPN Vigi Acti9 DT40 Acti9 DT60 Acti9 ID C40 Acti9 IDc Acti9 ITG40 Acti9 ID Acti9 DPN |
|---|---|
| Local signalling | Action indicator |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Height | 82.5 mm |
| Width | 18 mm |
| Depth | 73.5 mm |
| Product weight | 65 g |
| Colour | White |
| Connections - terminals | Clamp terminal - 1 cable(s) 2.5 mm² - flexible |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| Standards | EN/IEC 60947-2 |
|---|---|
| Product certifications | ASTA LCIE KEMA ASEFA |
| Tropicalisation | 2 conforming to EN/IEC 60947-2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.8 cm |
| Package 1 Width | 3 cm |
| Package 1 Length | 9.4 cm |
| Package 1 Weight | 74 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 8.8 cm |
| Package 2 Width | 10 cm |
| Package 2 Length | 26.6 cm |
| Package 2 Weight | 649 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 6.247 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | A9N26948 |
| Weight | 0.25 kg |
