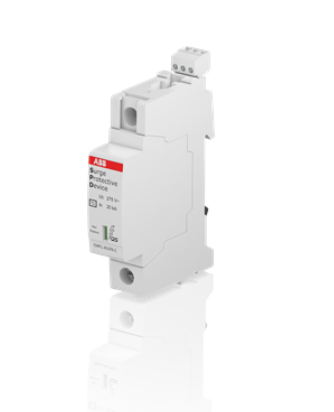

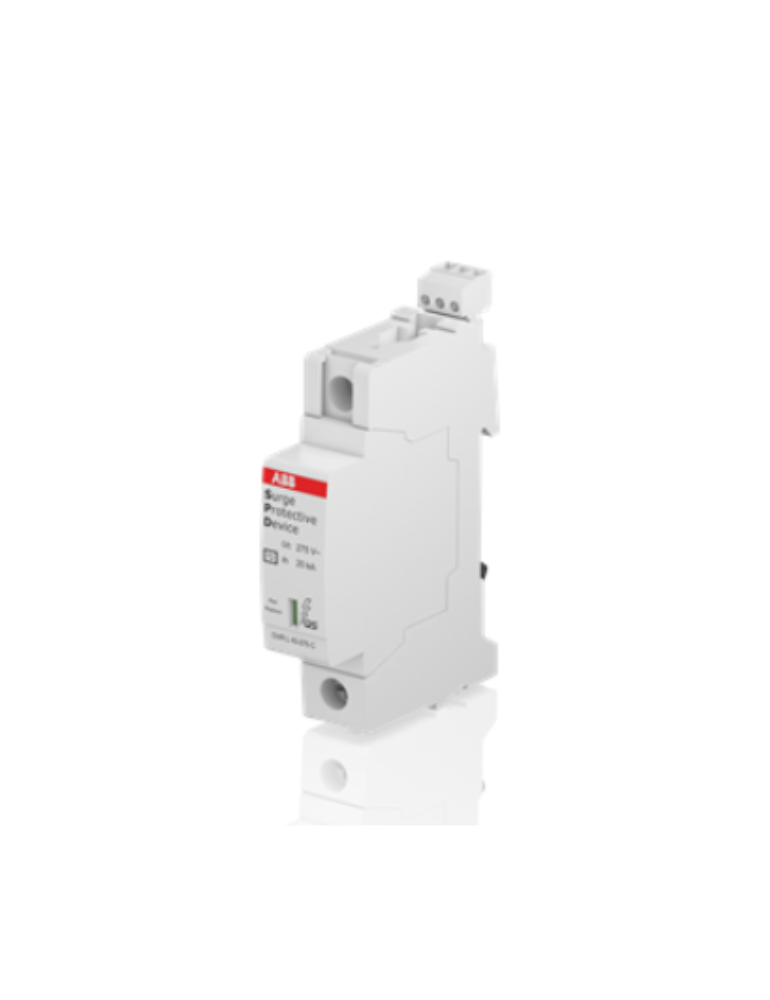

OVR T2 40-275 P TS QS

Rs. 7,950.00 + 18% GST Rs. 15,000.00
47
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 2CTB803871R1700
Visa Mastercard American Express UPI
Carbon Footprint (Full Lifecycle):
16.768584 kg CO₂ eq
EcoSolutions Profile:
Environmental Product Declaration - EPD:

Technical

Type of Low Voltage Distribution System:
TT
TN-C
TN-S
Suitable For:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
230 / 400 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 275 V
Temporary Overvoltage Test Value (UT):
337 V
Rated Service Short-Circuit Breaking Capacity (Ics):
100 kA
Discharge Current:
Nominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
Impulse Current:
I (imp, 10 / 350 µs) 2 kA
Short Circuit Withstand Icc:
100 kA
Arrester Class:
II
Number of Protected Poles:
1
Number of Auxiliary Contacts NC:
1
Number of Auxiliary Contacts NO:
1
Number of Poles:
1P
Number of Conductors:
1
Transmission Standard:
Optic
Version:
Plug-in
Product Type:
QS
Options Provided:
Residential, commercial building.
Auxiliary Circuit Load:
Minimum 12Vdc - 10mA
Maximum 250Vac - 1A
Preventive Maintenance Feature:
No
Status Indicator:
Yes
Fuse Size:
1 modular spacing
Cross-Section (Across):
Maximum Conductor Solid-Stranded 25 mm²
Maximum Conductor Flexible 16 mm²

Electrical

Rated Voltage (Ur):
230 V AC
Voltage Protection Level ( Up):
1.25 kV
(L-N) 1.25 kV
(N-PE) 1.25 kV
Power Loss:
Total 8 mW

Material Compliance

RoHS Information:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230707
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20231212
Conflict Minerals Reporting Template (CMRT):
SCIP:
eb870ea9-6bc9-4c32-80f0-da19296d1169 Bulgaria
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Degree of Protection:
IP20
Maximum Operating Altitude Permissible:
Without Derating 5000

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
17.8 mm
Product Net Height:
95 mm
Product Net Depth / Length:
58 mm
Product Net Weight:
0.12 kg

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
145 g
E-Number (Finland):
3217677
E-Number (Norway):
1672329

Certificates and Declarations

CB Certificate:
CQC Certificate:
Declaration:
Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000941 - Surge protection device for power supply systems
ETIM 10:
EC000941 - Surge protection device for power supply systems
UNSPSC:
39121610
eClass:
V11.0 : 27130805
Object Classification Code:
141DCC
Standards:
IEC 61643-11 / EN 61643-11
