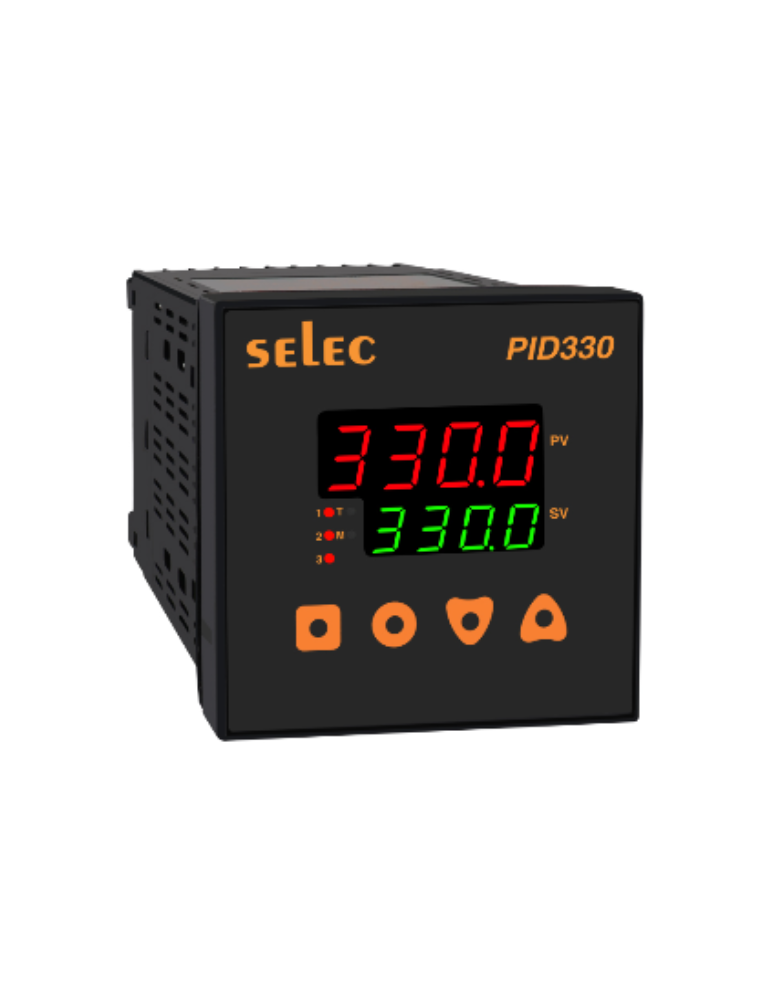

PID330-0-0-01 PID, Universal Input, Analog/Relay output, 96X96 mm

Rs. 5,344.00 + 18% GST Rs. 10,000.00
47
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: PID330-0-0-01
Visa Mastercard American Express UPI
Display Type 7 Segment LED Dual Display
Display Configuration 4+4 digits
Type of Inputs Thermocouple: J, K, T, R, S, C, B, N, L, U, W, Platinel II RTD: pt100, Single Input (DC) -5 to 56mV, 0 to 10V, 0 to 20mA (Selectable)
Resolution TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001
Accuracy For TC (J, K, T) inputs: 0.25% of F.S. ±1 For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1
Control Output Relay or Current : 4 to 20mA DC (max load 500E)
Auxiliary Output Maximum 2 Relay ( Mode:Set Point or Alarm mode )
Control Mode Autotune PID / ON-OFF
Feature Single step ramp soak
Communication RS485 MODBUS Communication (Optional)
Supply Voltage 90 to 270V AC/DC
Size 96 x 96mm
Mounting Type Panel Mount
Vendor INDUSWELL
Type Industrial & Scientific
Sku PID330-0-0-01
Weight 0.3 kg
