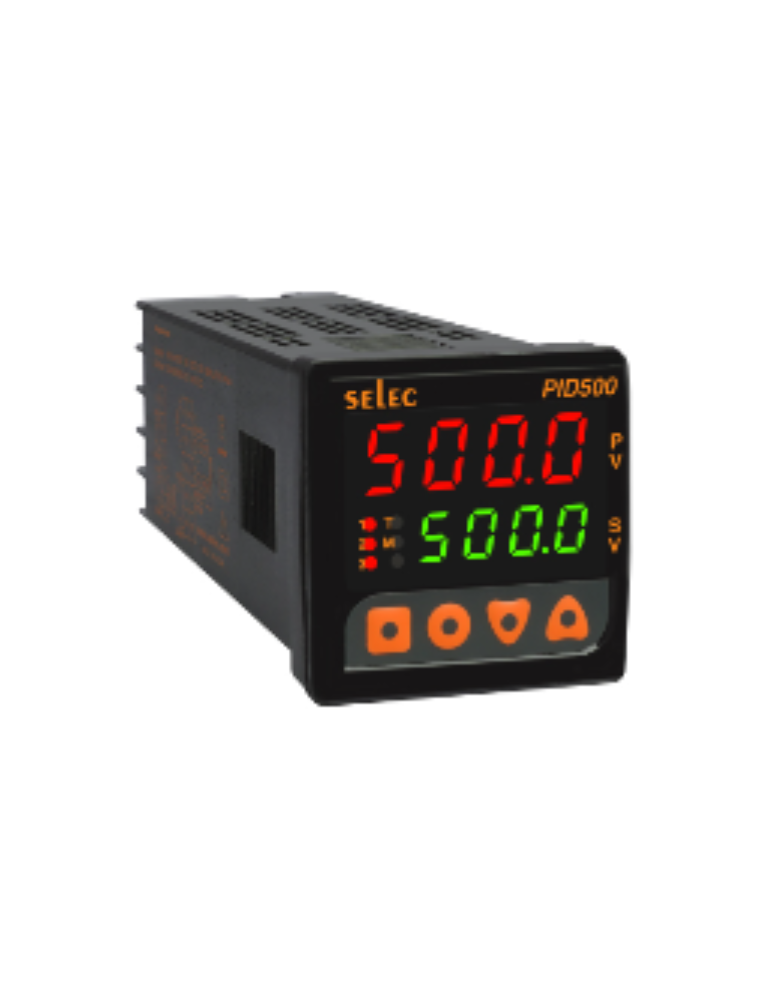

PID500-0-0-01 PID, Universal input, Analog/Relay/SSR output

Rs. 4,601.00 + 18% GST Rs. 8,000.00
42
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: PID500-0-0-01
Visa Mastercard American Express UPI
Display Type 7 Segment LED Dual Display
Display Configuration 4+4 digits
Type of Inputs Thermocouple: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II. RTD: PT100, Signal Inputs: (DC) -5 to 56mV, 0 to 10V, 0 to 20mA (Selectable)
Resolution TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001
Accuracy For TC (J, K, T) inputs: 0.25% of F.S. ±1 For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1
Control Output Relay or SSR or Current : 4 to 20mA DC (max load 500E) or Voltage :0 to 10V DC(min load 10K)
Auxiliary Output Relay
Control Mode Autotune PID / ON-OFF
Feature Single step ramp soak
Communication RS485 MODBUS communication (optional)
Supply Voltage 90V to 270V AC/DC
Size 48 x 48mm
Mounting Type Panel Mount
Certification CE
Vendor INDUSWELL
Type Industrial & Scientific
Sku PID500-0-0-01
Weight 0.5 kg
