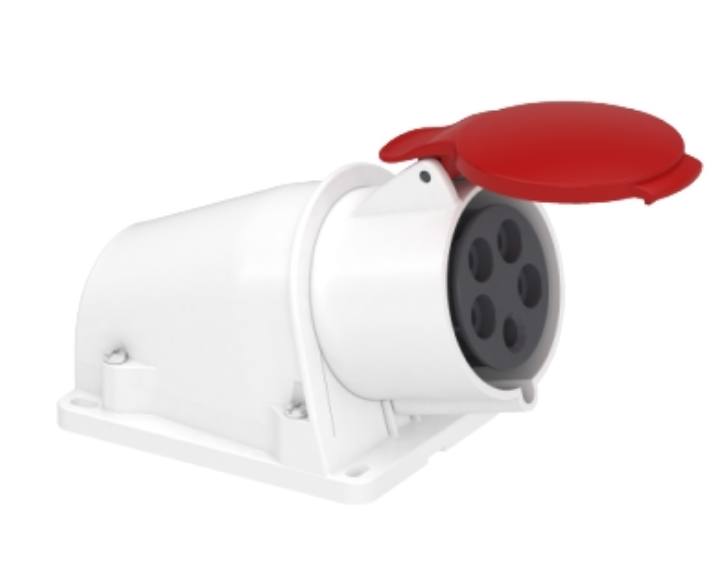

PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - wall

Rs. 2,124.00 + 18% GST Rs. 5,000.00
58
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: PKF32W435
Visa Mastercard American Express UPI
Main
Range Mureva
Product or component type Socket
Device short name Mureva socket
Plug, socket category Low voltage
Poles description 3P + N + E
Network type AC
Outlet standard Industrial
Complementary
Mounting mode Wall-mounted
Plug, socket, control station shape Angled
[In] rated current 32 A
[Ue] rated operational voltage 380...415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug, socket material Housing: self-extinguishing engineering polymer
Contacts material Sleeves: brass
Connections - terminals Captive screws
Cable cross section 2.5…10 mm²
Cable outer diameter 21 mm
Thread type M25
Net weight 0.33 kg
Height 120 mm
Width 90 mm
Depth 125 mm
Colour Grey (RAL 7035)
Voltage colour Red
Environment
Standards IEC 60309-2
IEC 60309-1
IP degree of protection IP44 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 750 °C conforming to IEC 60695-2-1
Relative humidity 50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
Ambient air temperature for operation 35 °C ( 86400 s )
-25…40 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 12.500 cm
Package 1 Length 16.000 cm
Package 1 Weight 299.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 6
Package 2 Height 18.000 cm
Package 2 Width 27.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 1.955 kg
Unit Type of Package 3 S03
Number of Units in Package 3 12
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 4.314 kg
Contractual warranty
Warranty (in months) 18

Vendor Amaze Industry
Sku PKF32W435
Weight 0.3 kg
