| Range | Mureva |
|---|---|

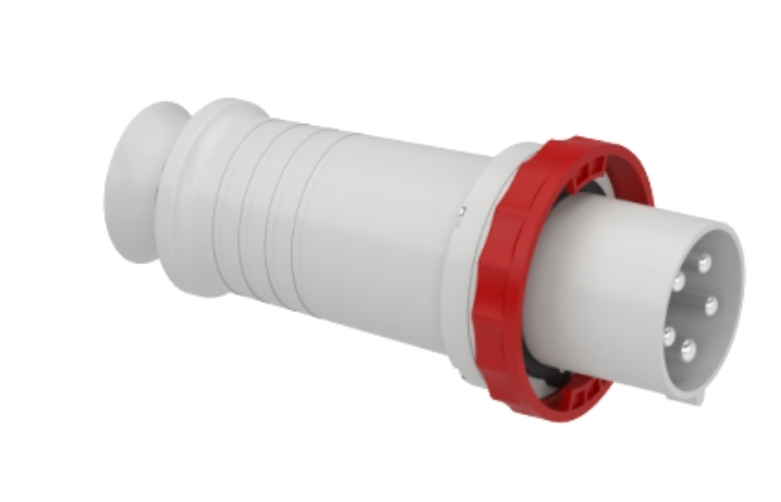

| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 125 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| Cable cross section | 16…70 mm² |
| Cable outer diameter | 26…48 mm |
| cable entry | Cable gland |
| Thread type | Pg 48 |
| Net weight | 1.46 kg |
| Height | 325 mm |
| Width | 131 mm |
| Depth | 131 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Standards | IEC 60309-1 IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.900 cm |
| Package 1 Width | 13.500 cm |
| Package 1 Length | 30.600 cm |
| Package 1 Weight | 1.466 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.817 kg |
| Warranty (in months) | 18 |
|---|
