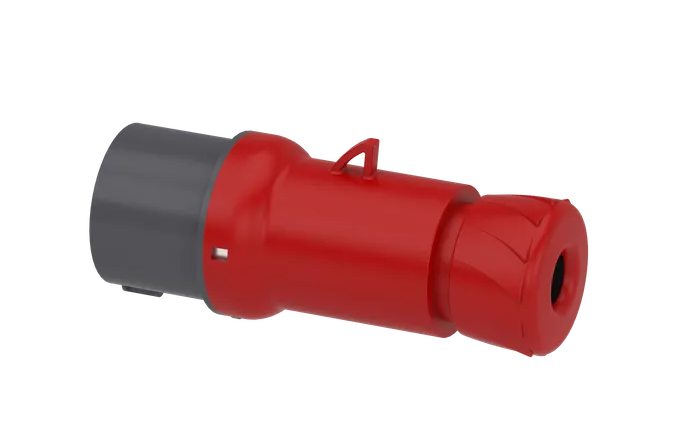

PratiKa wander plug - straight - 16 A - 3P + E - 380...415 V AC - IP44

Rs. 927.00 + 18% GST Rs. 2,000.00
54
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: PKE16M434 
Visa Mastercard American Express UPI
Main
Range Mureva
Product or component type Wander plug
Device short name Mureva plug
Plug, socket category Low voltage
Poles description 3P + E
Network type AC
Outlet standard Industrial
Complementary
Plug, socket, control station shape Straight
[In] rated current 16 A
[Ue] rated operational voltage 380...415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug, socket material Housing: self-extinguishing engineering polymer
Contacts material Sleeves: brass
Connections - terminals Captive screws
Cable cross section 1…4 mm²
Cable outer diameter 8…15 mm
cable entry Cable gland
Fair lead
Thread type Pg 16
Net weight 0.15 kg
Height 139 mm
Width 65 mm
Depth 65 mm
Colour Grey (RAL 7035)
Voltage colour Red
Environment
Standards IEC 60309-2
IEC 60309-1
IP degree of protection IP44 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 850 °C conforming to IEC 60695-2-11
Relative humidity 50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
Operating altitude 2000 m
Ambient air temperature for operation 35 °C ( 86400 s )
-25…40 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 5.600 cm
Package 1 Length 15.100 cm
Package 1 Weight 152.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 12.400 cm
Package 2 Width 26.600 cm
Package 2 Length 26.800 cm
Package 2 Weight 1.686 kg
Unit Type of Package 3 S03
Number of Units in Package 3 30
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.545 kg
Contractual warranty
Warranty (in months) 18

Vendor INDUSWELL
Type Industrial & Scientific
Sku PKE16M434 
Weight 0.6 kg
