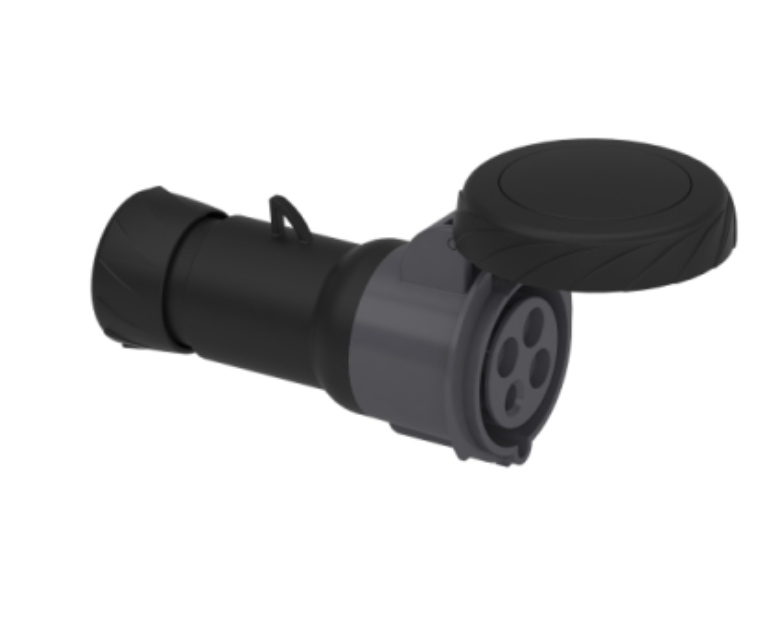

PratiKa wander socket - straight - 32 A - 3P + E - 480...500 V AC - IP67

Rs. 4,936.00 + 18% GST Rs. 10,000.00
51
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: PKF32W735
Visa Mastercard American Express UPI
Main
Range Mureva
Product or component type Wander socket
Device short name Mureva socket
Plug, socket category Low voltage
Poles description 3P + E
Network type AC
Outlet standard Industrial
Complementary
Plug, socket, control station shape Straight
[In] rated current 32 A
[Ue] rated operational voltage 480...500 V
Network frequency 50/60 Hz
Ground lug clockwise position 7 h
Plug, socket material Housing: self-extinguishing engineering polymer
Contacts material Sleeves: brass
Connections - terminals Captive screws
Cable cross section 2.5…10 mm²
Cable outer diameter 11.5…21 mm
cable entry Cable gland
Thread type Pg 21
Net weight 0.3 kg
Height 99 mm
Width 99 mm
Depth 164 mm
Colour Grey (RAL 7035)
Voltage colour Black
Environment
Standards IEC 60309-2
IEC 60309-1
IP degree of protection IP67 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 850 °C conforming to IEC 60695-2-1
Relative humidity 50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
Ambient air temperature for operation 35 °C ( 86400 s )
-25…40 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.9 cm
Package 1 Width 9.9 cm
Package 1 Length 16.4 cm
Package 1 Weight 382 g
Contractual warranty
Warranty (in months) 18

Vendor INDUSWELL
Type Industrial & Scientific
Sku PKF32W735
Weight 0.3 kg
