| Range of product | PRD1 |
|---|---|
| range of product | Multi9 |

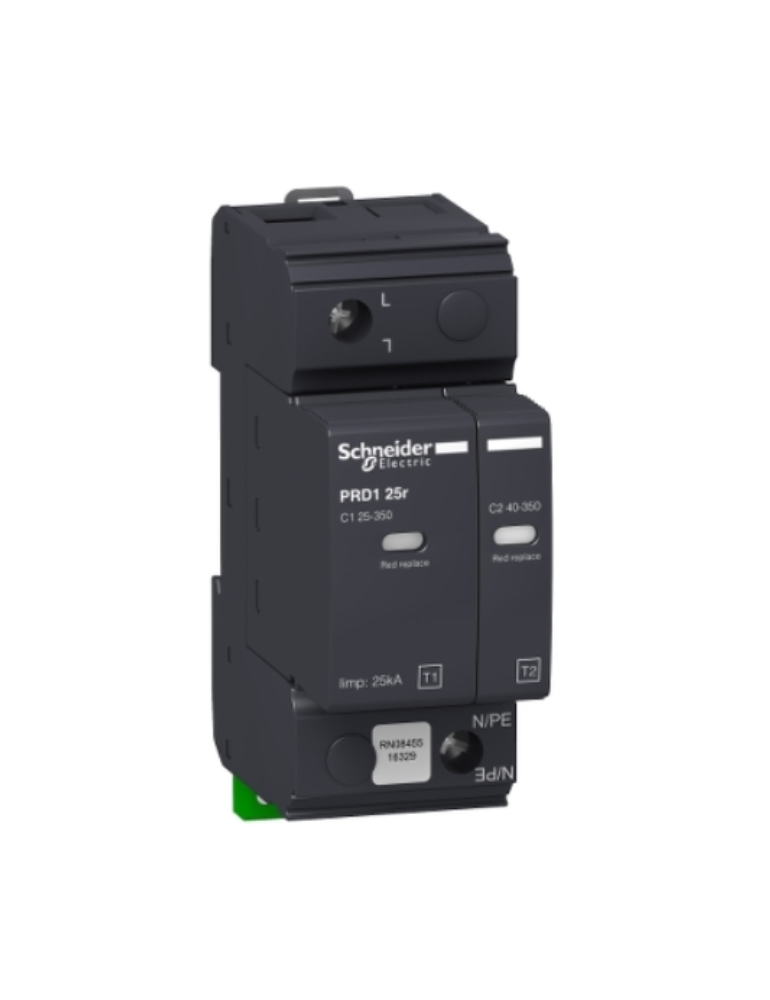

| Product name | Multi9 PRD1 |
| Product or component type | Surge arrester with pluggable cartridge |
| Device short name | PRD1 25r |
| Device application | Distribution |
| Standards | EN 61643-11:2012 IEC 61643-11:2011 |
| Product certifications | CE |
| Quality labels | KEMA-KEUR |
| Poles description | 1P |
| Remote signalling | With |
| Signal contacts composition | 1 SD (1 C/O) |
| Surge arrester type | Electrical distribution network |
| Earthing system | TN-C |
| Surge arrester class type | Type 1 + 2 |
|---|---|
| Surge arrester technology | MOV Spark gap |
| [Ue] rated operational voltage | 230 V AC (+/- 10 %) at 50 Hz |
| Nominal discharge current | Common mode: 25 kA (L/PE) |
| Maximum discharge current | Common mode: 40 kA L/PE |
| [Iimp] impulse current | Common mode: 25 kA L/PE 12.5 A.s |
| [Uc] maximum continuous operating voltage | Common mode: 350 V L/PE |
| Maximum [Up] voltage protection level | Common mode <1.5 kV type 2 L/PE |
| [Ut] temporary overvoltage | 1200 V N/PE 200 ms withstand 415 V L/N 5 s withstand 440 V L/N 7200 s safe failure mode |
| [Ifi] follow current | 25 kA differential mode L/N 3 kA differential mode L/N 100 A common mode N/PE |
| Short-circuit withstand | 25 kA |
| Disconnector device type | Associated fuse gG 315 A up to Isc = 25 kA Associated circuit breaker NSXm 100E TM-D up to Isc = 16 kA Associated circuit breaker NSXm 100B TM-D up to Isc = 25 kA Associated circuit breaker Compact NSX100B TM-D up to Isc = 25 kA |
| Signalling circuit voltage | 1 A/250 V AC 1 A/30 V DC |
| Mounting mode | Clip-on (DIN rail) |
| 9 mm pitches | 4 |
| Height | 90 mm |
| Width | 36 mm |
| Depth | 71 mm |
| Product weight | 334 g |
| Colour | Anthracite grey (RAL 7016) |
| Material | PBT (polybutylene terephthalate) |
| Connections - terminals | Tunnel type terminal (top or bottom) 10…35 mm² rigid Tunnel type terminal (top or bottom) 10…25 mm² flexible |
| Tightening torque | 4.5 N.m |
| Impulse current | 25 kA |
| Compatibility code | PRD1_25r |
| Market segment | Small commercial |
| IK degree of protection | IK05 conforming to IEC 62262 |
|---|---|
| Relative humidity | 5…95 % |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 11 cm |
| Package 1 Weight | 357 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 26 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 9.709 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | 16329 |
| Weight | 0.35 kg |
