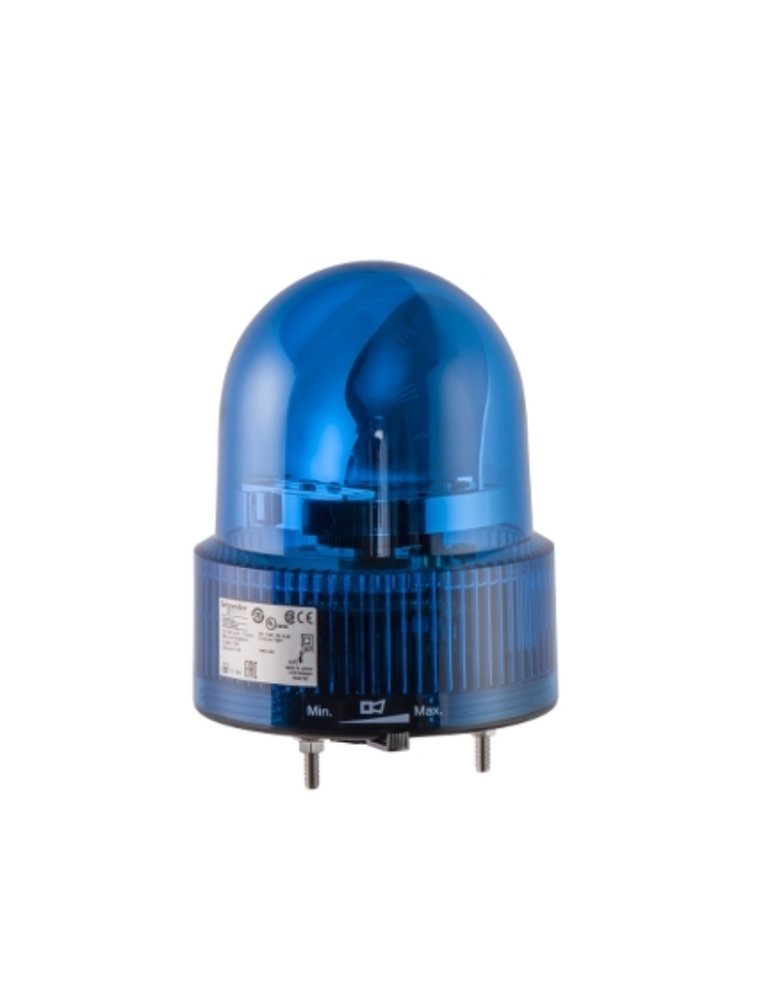

Prewired rotating mirror beacon, Harmony XVR, 120mm, blue, without buzzer, 24V AC/DC

Rs. 26,873.00 + 18% GST
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: XVR12B06
Visa Mastercard American Express UPI
Main
Range of Product Harmony XVR
Product or Component Type Prewired rotating mirror beacon
Sound signalling Without
Device short name XVR
Mounting diameter 4.7 in (120 mm)
IP degree of protection IP23 IEC 60529
[Us] rated supply voltage 24 V AC/DC
Light source High luminosity LED, blue
Complementary
Material ABS (acrylonitrile butadiene-styrene): body part
AS: globe
CAD overall width 4.7 in (120 mm)
CAD overall depth 4.7 in (120 mm)
Product Weight 1.1 lb(US) (0.5 kg)
Marking CE
Product mounting By 3 M5 screws
Supply voltage limits 19…30 V DC
21.6…26.4 V AC
[Uimp] rated impulse withstand voltage 0.8 kV
Current Consumption 125 mA
Flashing frequency 2.3 Hz
Clamping Connection Capacity 0.83 mm²
AWG Gauge AWG 18
Cable length 15.7 in (400 mm)
Environment
Standards IEC 61000-6-2
IEC 61000-6-4
Protective treatment TC
Ambient Air Temperature for Storage -31…158 °F (-35…70 °C)
Ambient Air Temperature for Operation 14…122 °F (-10…50 °C)
Electrical shock protection class Class II IEC 61140
Ordering and shipping details
Category US100XV22617
Discount Schedule 00XV
GTIN 3606480033186
Returnability Yes
Country of origin ID
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 5.5 in (14 cm)
Package 1 Width 5.6 in (14.2 cm)
Package 1 Length 7.7 in (19.5 cm)
Package weight(Lbs) 22.4 oz (634 g)
Unit Type of Package 2 S04
Number of Units in Package 2 8
Package 2 Height 11.8 in (30 cm)
Package 2 Width 15.7 in (40 cm)
Package 2 Length 23.6 in (60 cm)
Package 2 Weight 14.279 lb(US) (6.477 kg)
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku XVR12B06
Weight 0.2 kg
