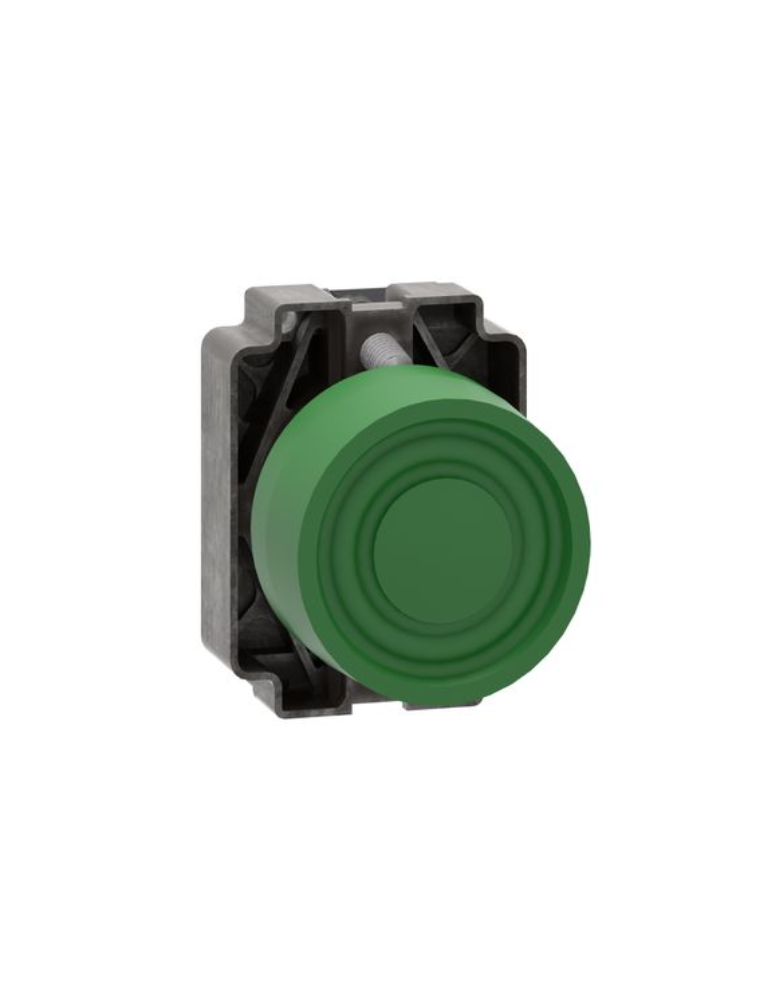

| Range of product | Easy Harmony XB2 |
|---|---|
| Product or component type | Complete push-button |
| Device presentation | Complete product |
| Device short name | XB2 |
| Bezel material | Chromium plated metal |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Head type | Booted |
| Fixing collar material | Zamak |
|---|---|
| Terminals description ISO n°1 | (13-14)NO |
| Overvoltage category | Class I conforming to IEC 60536 |
| Operating position | Any position |
| Cap/operator or lens colour | Green |
| Product compatibility | ZB2..C |
| Device mounting | Fixing hole - diameter: 22.5 mm |
| Fixing center | >= 30 x 40 mm (1...6 mm thick panel) zamak - thickness: 1…6 mm |
| Fixing mode | Fixing screw beneath head recommended torque: 0.8 N.m Fixing screw beneath head recommended torque: 1.0 N.m |
| Marking | Unmarked |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Green booted, unmarked |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Operating travel | 2.88 mm (NO changing electrical state) 5.0 mm (total travel) |
| Mechanical durability | 3000000 cycles |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² with and without cable ends Screw clamp terminal, <= 1 x 2.5 mm² with and without cable ends Screw clamp terminal, >= 1 x 0.5 mm² with and without cable ends Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8…1.0 N.m |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A gL fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-4 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-4 |
| Electrical durability | 1000000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.27 A at 250 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4 |
| Height | 30 mm |
| Width | 40 mm |
| Depth | 57.5 mm |
| Product weight | 0.07 kg |
| Customizable | No |
| Type of operator | Spring return |
| Protective treatment | TC/TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| IP degree of protection | IP66 |
| IK degree of protection | IK06 |
| Standards | IEC 60947-5-1 IEC 60947-5-4 IEC 60947-1 GB/T 14048.1 GB/T 14048.5 |
| Product certifications | CCC CE |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 4.000 cm |
| Package 1 Length | 4.500 cm |
| Package 1 Weight | 37.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.960 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 71.360 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | XB2BP31C |
| Weight | 0.2 kg |
