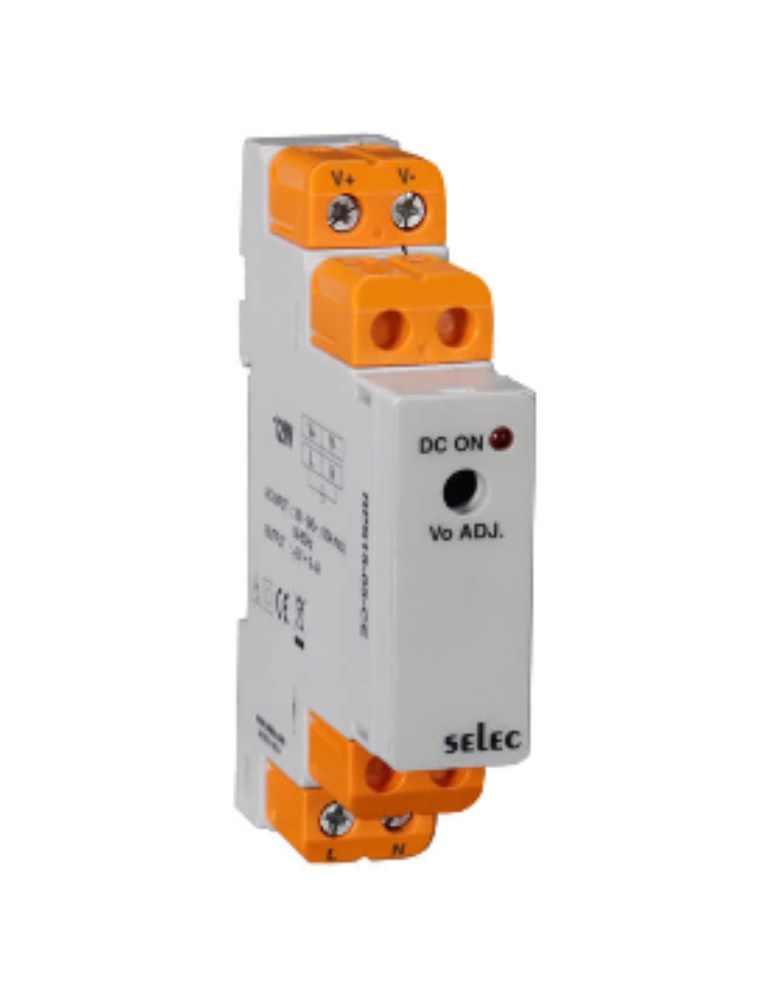

RPS15-05-CE DIN RAIL MOUNT 15W POWER SUPPLY

Rs. 1,604.00 + 18% GST Rs. 3,200.00
50
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: RPS15-05-CE
Visa Mastercard American Express UPI
Input Voltage 90 - 264 VAC (127 - 370 VDC)
Input Frequency 50/60 Hz
Inrush Current < 30 Amps; Measured at 264 VAC, 25°C Ambient, Cold start
Output Voltage 5 V to 24 V
Output Power 15 W
Voltage Tolerance ± 1 %
Line Regulation ± 1 %
Load Regulation ± 1 %
Turn On Time < 1 sec, full load
Hold Up Time 30 ms @ 230 VAC & 10 ms @ 115 VAC, full load
Rise Time < 100 ms
Overload Protection 110 % to 150 % of rated output current; Hiccup type, Autorecovery
Output Short Circuit Protection Hiccup mode when output is shorted; Autorecovery type
Operating Temperature -40°C to +70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C.
Note : Only start up guaranteed at -40°C with spec deterioration.
Storage Temperature -40°C to +85°C
Cooling Natural convection cooled
Humidity 5 to 95 % RH, Non condensing
Altitude 2000 m
Dimension 17.5 x 90 x 65 mm(W x H x D)
Weight < 100 gms
Mounting 35 mm DIN Rail
Vendor INDUSWELL
Type Industrial & Scientific
Sku RPS15-05-CE
Weight 0.1 kg
