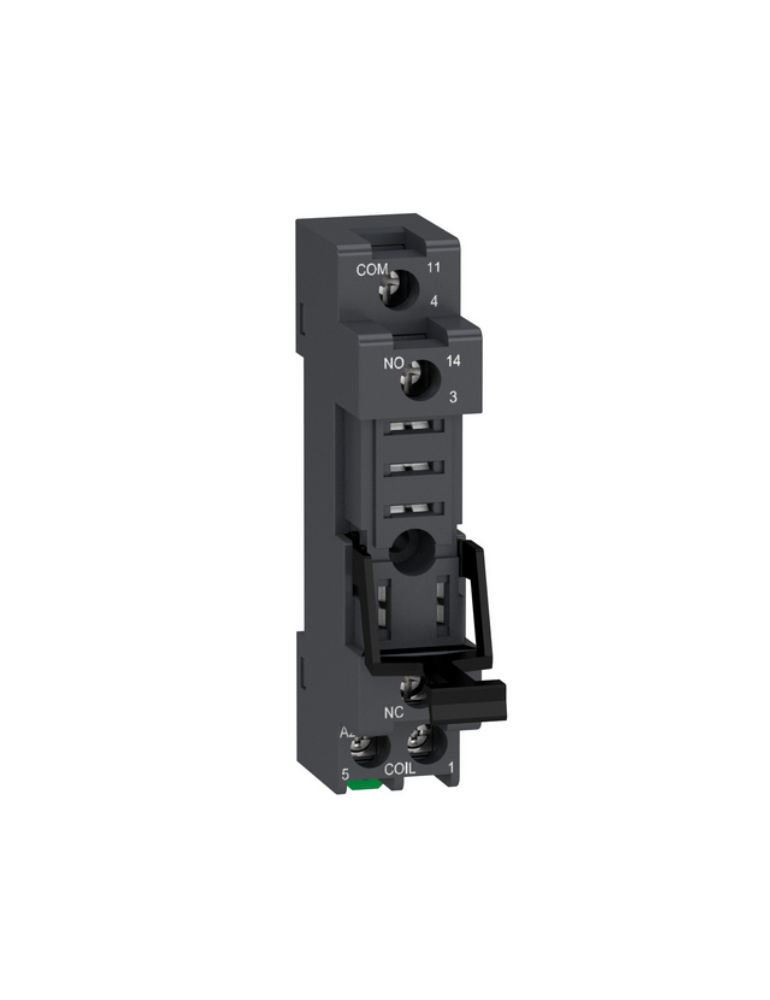

Schneider Electric RGZE05E, 10A, Harmony Electromechanical Relays, Screw clamp socket Programmable Electronic Timer Switch

Rs. 449.00 + 18% GST Rs. 789.00
43
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: RGZE05E
Visa Mastercard American Express UPI
Main
Range of product Harmony Electromechanical Relays
Product or component type Socket
Product compatibility Plug-in relay RXG with 1 C/O contact
[Ui] rated insulation voltage 250 V
Complementary
[Uimp] rated impulse withstand voltage 4 kV between coil and contact with basic insulation
4 kV between terminals and DIN rail with basic insulation
[Ue] rated operational voltage 250 V conforming to IEC
300 V conforming to UL
Dielectric strength 4 kV between coil and contact with basic insulation
3 kV between terminals and DIN rail with basic insulation
Shape of pin Flat
Connections - terminals Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) flexible with cable end
Screw terminals, 2 x 0.5...2 x 1 mm² (AWG 20...AWG 17) flexible with cable end
Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
Fixing mode Clip-on (35 mm symmetrical DIN rail)
Length 69.6 mm
Contact terminal arrangement Mixed
Overvoltage category III
Pollution degree 3
Width 16 mm
Height 50.2 mm
Product weight 0.024 kg
Environment
Standards IEC 61984
Product certifications CSA
UL
EAC
Marking CE
Ambient air temperature for storage -40…85 °C
Ambient air temperature for operation -40…70 °C
IP degree of protection IP20
Relative humidity 10…95 %
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.700 cm
Package 1 Width 3.400 cm
Package 1 Length 7.400 cm
Package 1 Weight 23.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 4.100 cm
Package 2 Width 8.200 cm
Package 2 Length 16.700 cm
Package 2 Weight 263.000 g
Unit Type of Package 3 S03
Number of Units in Package 3 360
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 10.007 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku RGZE05E
Weight 0.45 kg
