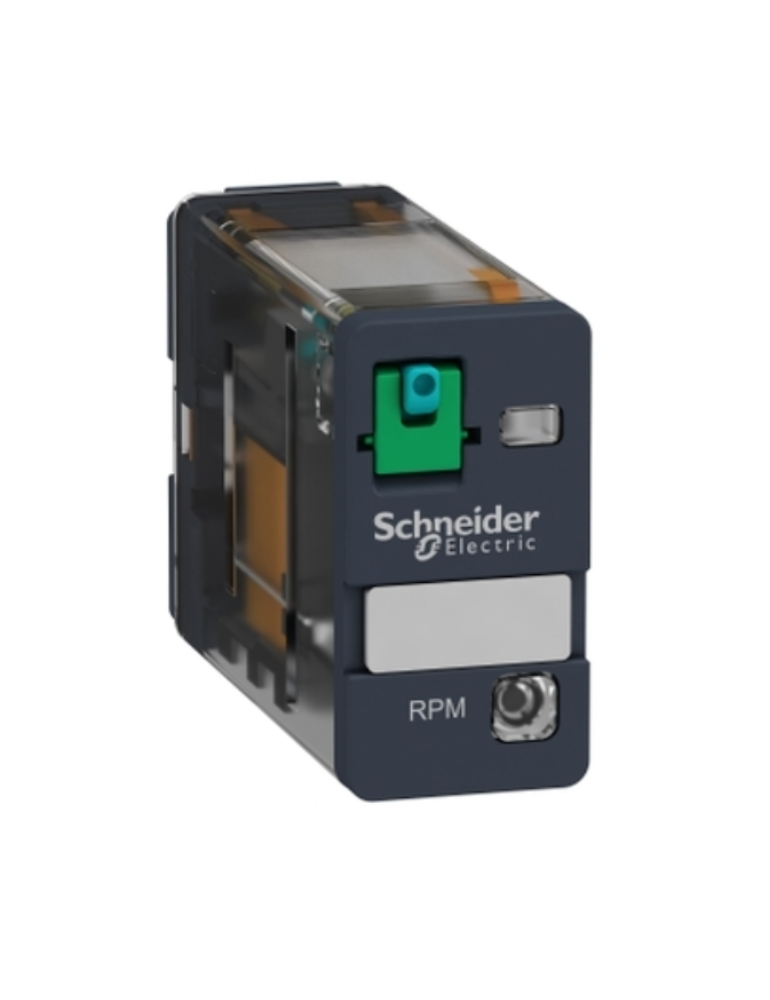

| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | RPM series |
| Product or component type | Plug-in relay |
| Contacts type and composition | 1 C/O |
| Relay type | Power relay |
| status LED | With |
| [Uc] control circuit voltage | 24 V DC |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Release time | 20 ms at nominal voltage |
| Ambient air temperature for operation | -40…55 °C |
| [Ithe] conventional enclosed thermal current | 15 A at -40…55 °C |
| Control type | Lockable test button |
|---|---|
| [Ie] rated operational current | 15 A at 277 V (AC) conforming to UL 15 A at 28 V (DC) conforming to UL 15 A at 250 V (AC) NO conforming to IEC 15 A at 28 V (DC) NO conforming to IEC 7.5 A at 250 V (AC) NC conforming to IEC 7.5 A at 28 V (DC) NC conforming to IEC |
| Degree of protection (Housing only) | IP40 conforming to IEC 60529 |
| Rated operational voltage limits | 19.2...26.4 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Average coil consumption | 1.1 W |
| Average resistance | 450 Ohm at 20 °C +/- 10 % |
| Maximum switching capacity | 3750 VA 420 W |
| Load current | 15 A at 250 V AC 15 A at 28 V DC |
| Operating time | 20 ms at nominal voltage |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Protection category | RT I |
| Mounting support | Plug-in |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Product weight | 0.026 kg |
| Pollution degree | 3 |
|---|---|
| Standards | IEC 61810-1 UL 508 CSA C22.2 No 14 |
| Product certifications | CSA EAC UL |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 15 gn for in operation 30 gn for not operating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.400 cm |
| Package 1 Width | 2.600 cm |
| Package 1 Length | 3.900 cm |
| Package 1 Weight | 24.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.300 cm |
| Package 2 Width | 8.300 cm |
| Package 2 Length | 11.000 cm |
| Package 2 Weight | 274.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 360 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 10.382 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | RPM12BD |
