| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | RXM series |

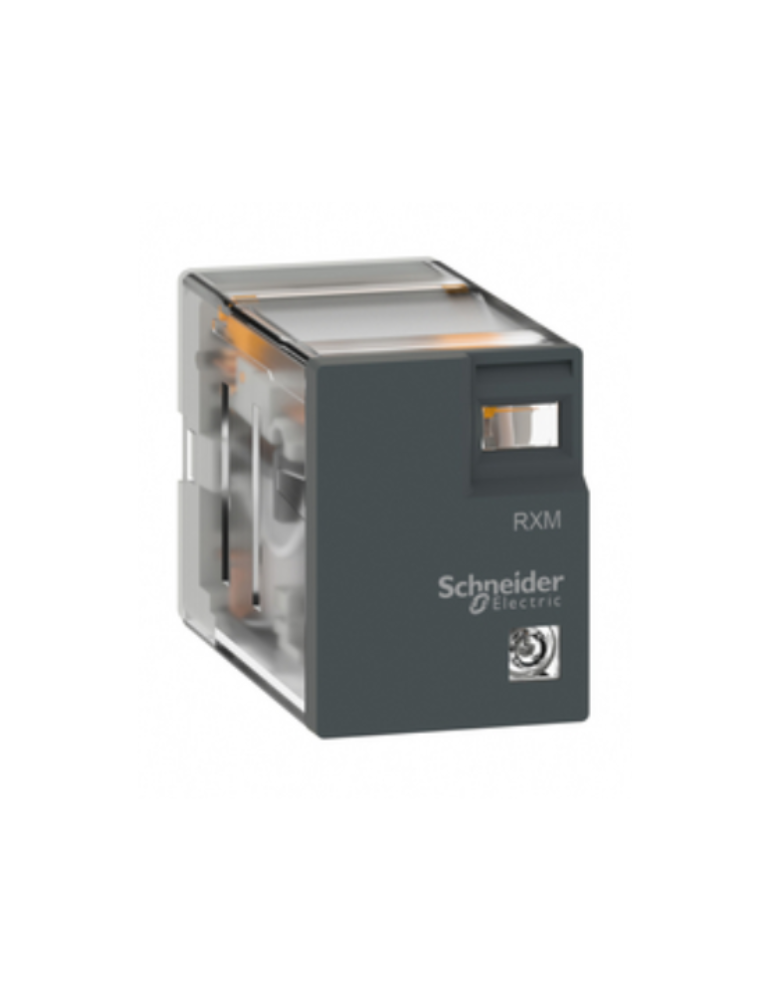

| Product or component type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| status LED | Without |
|---|---|
| Control type | Without lockable test button |
| [Ie] rated operational current | 2.5 A at 28 V (DC) NC conforming to IEC 2.5 A at 250 V (AC) NC conforming to IEC 5 A at 28 V (DC) NO conforming to IEC 5 A at 250 V (AC) NO conforming to IEC 5 A at 24 V (DC) NO conforming to IEC 5 A at 220 V (AC) NO conforming to IEC 5 A at 28 V (DC) conforming to UL 5 A at 250 V (AC) conforming to UL |
| Minimum switching capacity | 25 mW subject to switching frequency, environment or expected reliability level etc |
| Rated operational voltage limits | 19.2...26.4 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| Maximum switching voltage | 250 V AC 28 V DC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Load current | 5 A at 250 V AC 5 A at 28 V DC |
| Maximum switching capacity | 1250 VA AC 140 W DC |
| Minimum switching current | 5 mA subject to switching frequency, environment or expected reliability level etc |
| Minimum switching voltage | 5 V subject to switching frequency, environment or expected reliability level etc |
| Average resistance | 640 Ohm at 23 °C +/- 10 % |
| Average coil consumption | 0.9 W, DC |
| Mechanical durability | 20000000 cycles |
| Electrical durability | 200000 cycles resistive load 23 °C 100000 cycles resistive load at 55 °C |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation 1000 V AC between contacts with micro disconnection |
| Protection category | RT I |
| Pollution degree | 3 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Sale per indivisible quantity | 10 |
| Contacts material | Silver alloy (Ag/Ni) |
| Shape of pin | Flat (faston type) |
| Product weight | 0.032 kg |
| Standards | CE IEC 61810-1 (iss. 2) UL 508 |
|---|---|
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…50 Hz)operating conforming to IEC 60068-2-6 6 gn, amplitude = +/- 1 mm (f = 10…50 Hz)not operating conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn for not operating conforming to IEC 60068-2-27 10 gn for in operation conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.1 cm |
| Package 1 Width | 2.1 cm |
| Package 1 Length | 2.8 cm |
| Package 1 Weight | 37.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.1 cm |
| Package 2 Width | 2.1 cm |
| Package 2 Length | 2.8 cm |
| Package 2 Weight | 390.0 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 270 |
| Package 3 Height | 15.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 10.445 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | RXM2LB1BD |
| Weight | 0.45 kg |
