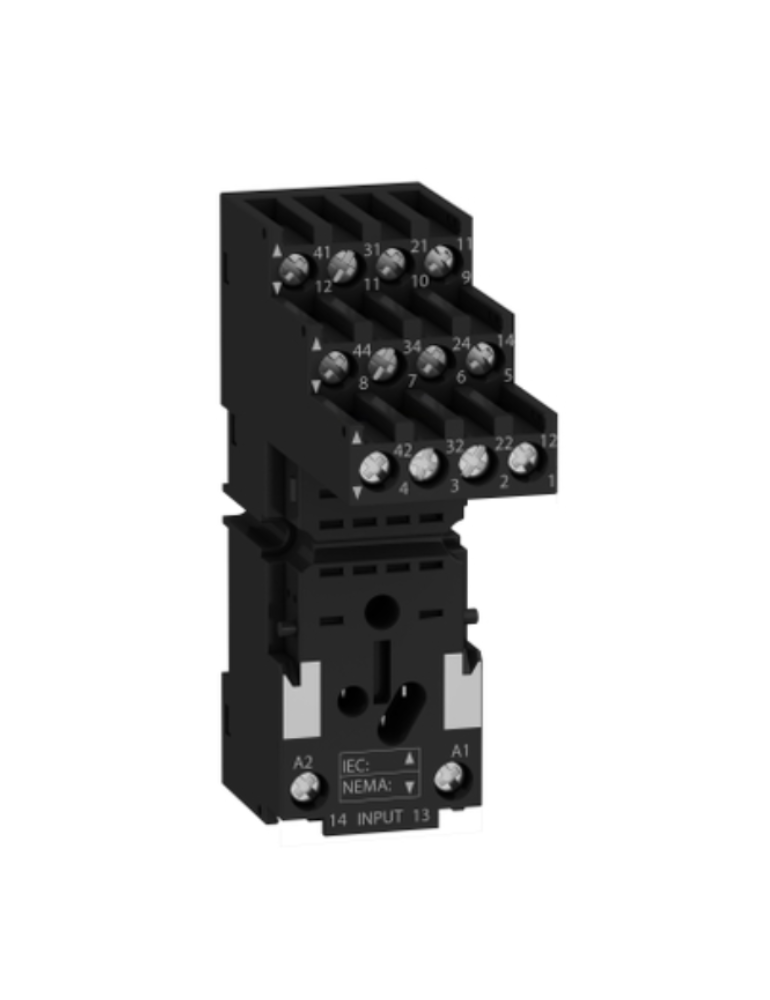

Schneider Electric Screw clamp terminal, mixed contact socket, 250 V AC, RXZE2S111M 10 A Four Pin Socket

Rs. 599.00 + 18% GST Rs. 899.00
33
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: RXZE2S111M
Visa Mastercard American Express UPI
Main
Range of product Harmony Electromechanical Relays
Product compatibility Plug-in relay RXM with 3 C/O contact
Device short name RXZ
[Ith] conventional free air thermal current 10 A
Product or component type Socket
Contacts type and composition 3 C/O
Complementary
[Ue] rated operational voltage < 250 V conforming to IEC
< 300 V conforming to UL
Connections - terminals Screw connectors, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
Screw connectors, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
Shape of pin Flat
Tightening torque < 1 N.m for M3 screw(s)
Fixing mode By screw (panel)
Clip-on (35 mm symmetrical DIN rail)
Wire stripping length 8 mm
Contact terminal arrangement Separate
[Uimp] rated impulse withstand voltage 4 kV
Overvoltage category III
Pollution degree 3
Sale per indivisible quantity 10
Width 27 mm
Net weight 0.058 kg
Environment
IP degree of protection IP20 conforming to IEC 60529
Dielectric strength 2500 V
Standards IEC 61984
Product certifications UL
Lloyd's
CSA
Marking CE
Ambient air temperature for storage -40…85 °C
Ambient air temperature for operation -40…55 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.100 cm
Package 1 Width 2.700 cm
Package 1 Length 7.500 cm
Package 1 Weight 60.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 6.600 cm
Package 2 Width 13.600 cm
Package 2 Length 11.000 cm
Package 2 Weight 646.000 g
Unit Type of Package 3 S03
Number of Units in Package 3 200
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 13.412 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku RXZE2S111M
Weight 0.3 kg
