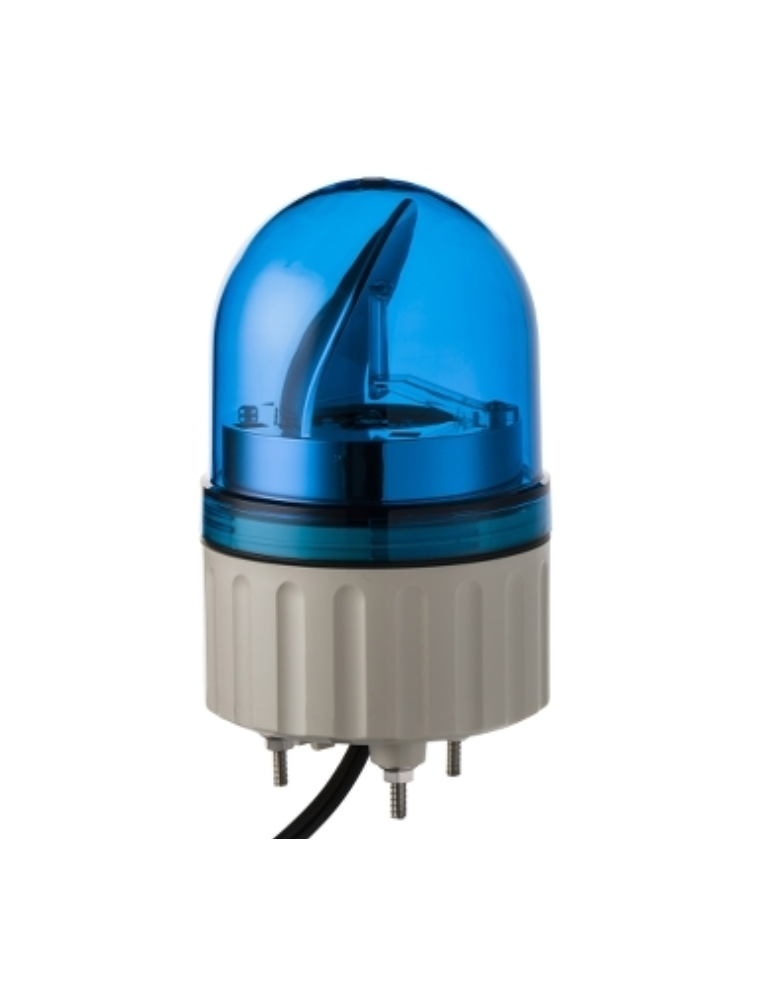

Schneider Electric XVR08B06 Picture Prewired rotating mirror beacon, Harmony XVR, 84mm, blue, without buzzer, 24V AC/DC

Rs. 18,965.00 + 18% GST
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: XVR3B04
Visa Mastercard American Express UPI
Main
Range of Product Harmony XVR
Product or Component Type Prewired rotating mirror beacon
Sound signalling Without
Device short name XVR
Mounting diameter 3.3 in (84 mm)
IP degree of protection IP65 IEC 60529 with accessory)
IP23 IEC 60529
[Us] rated supply voltage 24 V AC/DC
Light source High luminosity LED, blue
Complementary
Material ABS (acrylonitrile butadiene-styrene): body part
PC: globe
CAD overall width 3.3 in (84 mm)
CAD overall depth 3.3 in (84 mm)
Product Weight 0.7 lb(US) (0.3 kg)
Marking CE
Product mounting By 3 M4 screws
Supply voltage limits 19…30 V DC
21.6…26.4 V AC
[Uimp] rated impulse withstand voltage 0.8 kV
Current Consumption 125 mA
Flashing frequency 2.3 Hz
Clamping Connection Capacity 0.83 mm²
AWG Gauge AWG 18
Cable length 19.7 in (500 mm)
Environment
Standards IEC 61000-6-2
IEC 61000-6-4
Product Certifications UL
Protective treatment TC
Ambient Air Temperature for Storage -31…158 °F (-35…70 °C)
Ambient Air Temperature for Operation 14…122 °F (-10…50 °C)
Electrical shock protection class Class II IEC 61140
Ordering and shipping details
Category US100XV22617
Discount Schedule 00XV
GTIN 3606480033025
Returnability Yes
Country of origin ID
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 7.283 in (18.500 cm)
Package 1 Width 3.740 in (9.500 cm)
Package 1 Length 3.740 in (9.500 cm)
Package weight(Lbs) 13.757 oz (390.000 g)
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 11.811 in (30.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 7.039 lb(US) (3.193 kg)
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku XVR3B04
Weight 0.2 kg
