Smile 11 EAR Tina

Rs. 16,960.00 + 18% GST Rs. 32,000.00
47
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 2TLA030050R0100
Visa Mastercard American Express UPI
Minimum Order Quantity:
1 piece
Customs Tariff Number:
8536508099
Product Main Type:
Smile
Product Name:

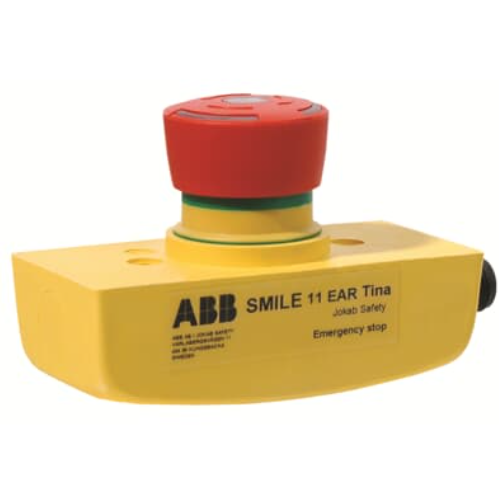

Emergency stop button
Function:
Turn-release

Popular Downloads

Data Sheet, Technical Information:
Data Sheet, Technical Information (Part 2):

Installation

Instructions and Manuals:
Mounting Type:
Surface mounting

Dimensions

Product Net Depth / Length:
57 mm
Product Net Height:
97 mm
Product Net Width:
40 mm
Product Net Weight:
0.076 kg

Safety Information

Performance Level (PL):
Up to e

Technical

Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Voltage:
24 V DC

Environmental

Ambient Air Temperature:
Operation -10 ... 55 °C
Degree of Protection:
IP65

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Declaration:
RoHS Information:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

TÜV Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
150 mm
Package Level 1 Depth / Length:
60 mm
Package Level 1 Height:
80 mm
Package Level 1 Gross Weight:
0.096 kg
Package Level 1 EAN:
7350024432244

External Classifications and Standards

eClass:
V11.0 : 27371244
ETIM 7:
EC002034 - Emergency stop complete
ETIM 8:
EC002034 - Emergency stop complete
ETIM 9:
EC002034 - Emergency stop complete
Object Classification Code:
B
E-Number (Finland):
2307402
Vendor INDUSWELL
Type Industrial & Scientific
Sku 2TLA030050R0100
Weight 0.076 kg
