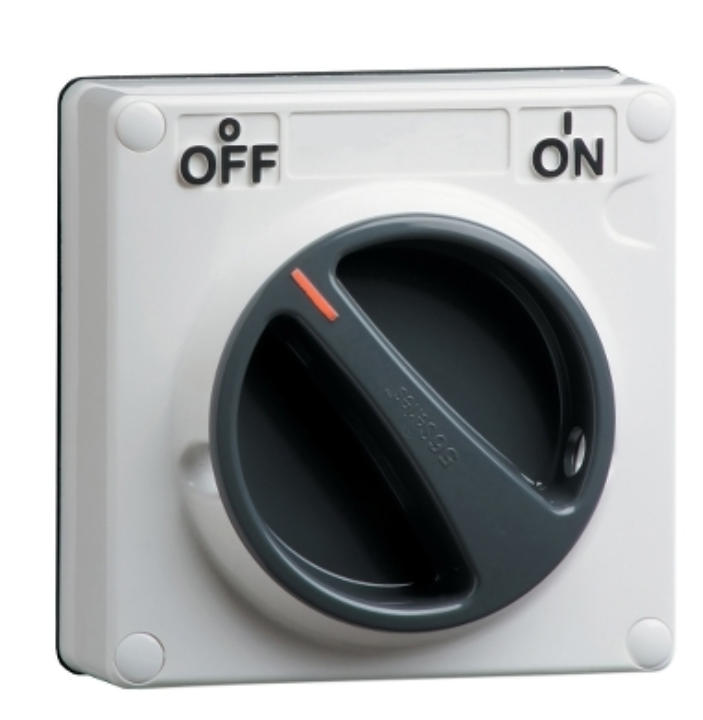

Surface Switch, Clipsal - 56 Series, 1 Gang, 1 Pole, 250VAC, 20A, Less Enclosure

Rs. 6,741.00 + 18% GST Rs. 13,000.00
48
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 56SW120LE-GY
Visa Mastercard American Express UPI
Main
Range of product Series 56
Range Clipsal - 56 Series
Product brand Clipsal
Product Type Switch
Assembly Type Basic element with full cover plate
Device application Control
Colour tint Grey
Suitability for isolation Yes
Complementary
Poles description 1P
[Icm] rated short-circuit making capacity 1 kA
Control type Rotary knob
Number of switched poles 1
Installation Type Surface
Material PC (polycarbonate)
IP degree of protection IP66
Tightening torque 0.8 N.m
Local signalling without
[Ue] rated operational voltage 250 V AC 50 Hz
Rated current 20 A
Marking ON-OFF
Marking location Marking on surface
Breaking capacity 20 kA
Targeted country Australia
Height 107 mm
Width 101 mm
Depth 72 mm
Net weight 0.24 kg
Motor M-rating AS3133 M150 at 250 V
[Uimp] rated impulse withstand voltage 4 kV
[Icw] rated short-time withstand current 1.2 kA for 1 s
Switch function 1-pole
Environment
Ambient air temperature for operation -25…75 °C
Standards AS/NZS 3133
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 10.000 cm
Package 1 Length 10.000 cm
Package 1 Weight 245.000 g
Unit Type of Package 2 S04
Number of Units in Package 2 45
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 11.490 kg
Contractual warranty
Warranty (in months) 18

Vendor INDUSWELL
Type Industrial & Scientific
Sku 56SW120LE-GY
Weight 0.3 kg
