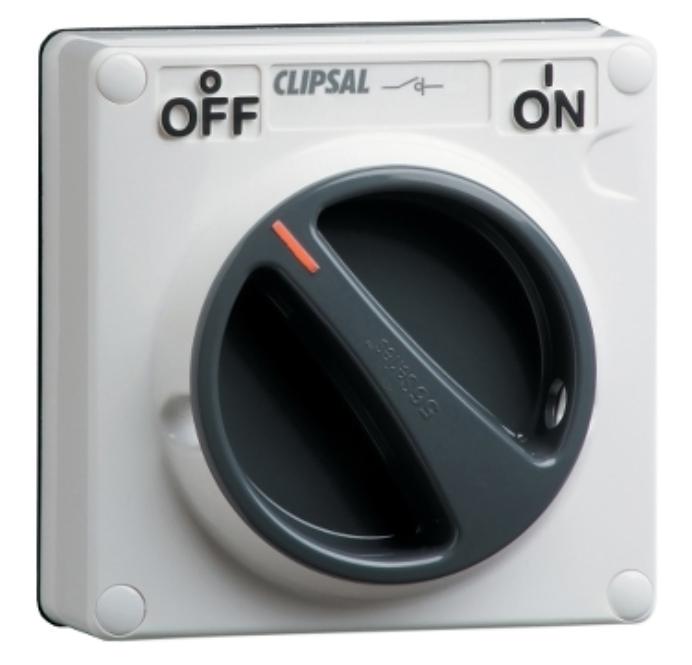

Surface Switch, Clipsal - 56 Series, IP66 1 Gang Double Pole 50A Less Enclosure

Rs. 12,036.00 + 18% GST Rs. 24,056.00
50
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 56SW250LE-GY
Visa Mastercard American Express UPI
Main
Range of product Series 56
Range Clipsal - 56 Series
Product brand Clipsal
Product Type Switch
Assembly Type Basic element with full cover plate
Device application Control
Colour tint Grey
Suitability for isolation Yes
Complementary
Poles description 2P
[Icm] rated short-circuit making capacity 2.1 kA
Control type Rotary knob
Number of switched poles 2
Installation Type Surface
Material PC (polycarbonate)
IP degree of protection IP66
Tightening torque 0.8 N.m
Local signalling without
[Ue] rated operational voltage 250 V AC 50 Hz
Rated current 50 A
Marking ON-OFF
Marking location Marking on surface
Breaking capacity 50 kA
Targeted country Australia
Height 107 mm
Width 101 mm
Depth 72 mm
Net weight 0.001 kg
Motor M-rating AS3133 M250 at 250 V
[Uimp] rated impulse withstand voltage 4 kV
[Icw] rated short-time withstand current 1.5 kA for 1 s
Switch function 2-pole
Environment
Ambient air temperature for operation -25…75 °C
Standards AS/NZS 3133
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 10 cm
Package 1 Width 10 cm
Package 1 Length 10 cm
Package 1 Weight 340 g
Unit Type of Package 2 CAR
Number of Units in Package 2 24
Package 2 Height 21 cm
Package 2 Width 34.8 cm
Package 2 Length 44.5 cm
Package 2 Weight 8.6 kg
Contractual warranty
Warranty (in months) 18

Vendor INDUSWELL
Type Industrial & Scientific
Sku 56SW250LE-GY
Weight 0.3 kg
