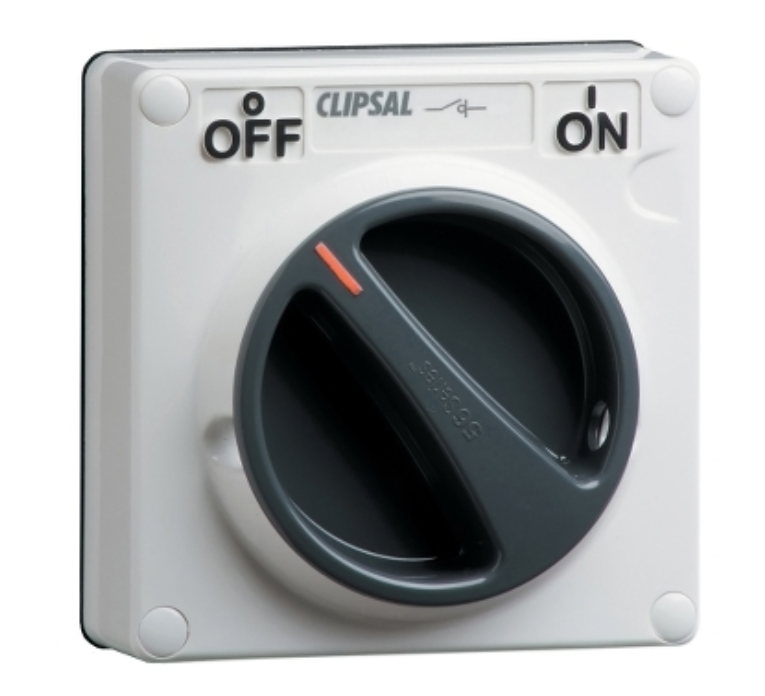

Surface Switch, Clipsal - 56 Series, PVC IP66 1 Gang 10A Less Enclosure

Rs. 4,798.00 + 18% GST Rs. 10,000.00
52
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 56SW110LE-GY
Visa Mastercard American Express UPI
Main
Range of product Series 56
Range Clipsal - 56 Series
Product brand Clipsal
Product Type Switch
Assembly Type Basic element with full cover plate
Device application Control
Colour tint Grey
Suitability for isolation No
Complementary
Poles description 1P
Control type Rotary knob
Number of switched poles 1
Installation Type Surface
Material PC (polycarbonate)
IP degree of protection IP66
Tightening torque 0.8 N.m
Local signalling without
[Ue] rated operational voltage 250 V AC 50 Hz
Rated current 10 A
Marking ON-OFF
Marking location Marking on surface
Breaking capacity 10 kA
Targeted country Australia
Height 107 mm
Width 101 mm
Depth 70 mm
Net weight 0.2 kg
Motor M-rating AS3133 M80 at 250 V
Switch function 1-pole
Environment
Ambient air temperature for operation -25…75 °C
Standards AS/NZS 3133
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.2 cm
Package 1 Width 10.0 cm
Package 1 Length 10.4 cm
Package 1 Weight 186.0 g
Contractual warranty
Warranty (in months) 18

Vendor INDUSWELL
Type Industrial & Scientific
Sku 56SW110LE-GY
Weight 0.3 kg
