| Range | TeSys |
|---|---|

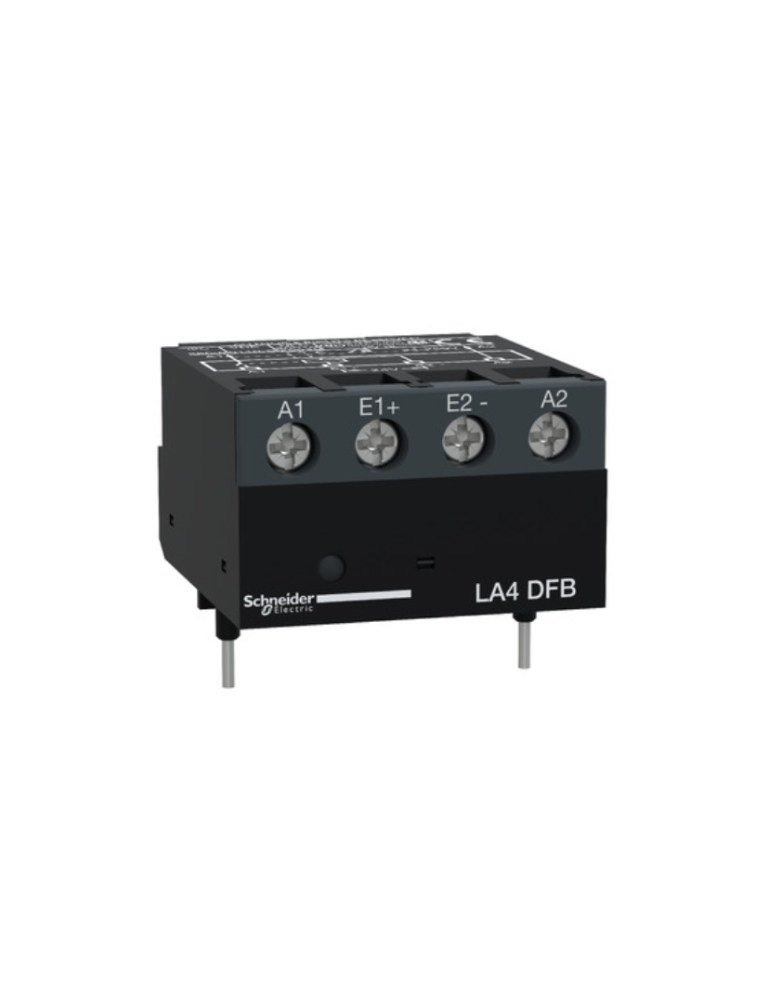

| Device short name | LA4D |
| Poles description | 3P |
| Product or component type | Interface module |
| Product compatibility | LC1D09...D150 |
| Mounting mode | Top mounted |
|---|---|
| Technology type | Electromechanical |
| [Us] rated supply voltage | 24 V DC |
| Control circuit voltage limits | 17...30 V at 20 °C DC |
| [Ui] rated insulation voltage | 250 V - for control circuit conforming to IEC 60947-5-1 |
| Connections - terminals | Control circuit: connector 1 cable(s) 1…2.5 mm²flexible with cable end Control circuit: connector 1 cable(s) 1…2.5 mm²flexible without cable end Control circuit: connector 1 cable(s) 1…2.5 mm²solid with cable end Control circuit: connector 1 cable(s) 1…2.5 mm²solid without cable end Control circuit: connector 2 cable(s) 1…2.5 mm²flexible with cable end Control circuit: connector 2 cable(s) 1…2.5 mm²flexible without cable end Control circuit: connector 2 cable(s) 1…2.5 mm²solid with cable end Control circuit: connector 2 cable(s) 1…2.5 mm²solid without cable end |
| [Ue] rated operational voltage | Control circuit: 24...250 V AC |
| Current consumption | 25 mA 20 °C |
| Current state 0 guaranteed | <= 2 mA |
| Voltage state 0 guaranteed | < 2.4 V |
| Voltage state 1 guaranteed | 17 V |
| Electrical durability | 10 Mcycles at 240 V |
| Local signalling | LED indicator |
| Height | 12 mm |
| Product weight | 0.05 kg |
| Standards | IEC 60255-5 |
|---|---|
| Product certifications | UL CSA |
| [Ith] conventional free air thermal current | 8 A 50 °C |
| Protection type | Built-in by diode |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Ambient air temperature for operation | -25…55 °C |
| Permissible ambient air temperature around the device | -25…70 °C |
| Ambient air temperature for storage | -40…80 °C |
| Heat dissipation | 0.6 W for control circuit |
| Immunity to microbreaks | 4 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 5.000 cm |
| Package 1 Length | 5.000 cm |
| Package 1 Weight | 49.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.767 kg |
| Warranty (in months) | 18 |
|---|
