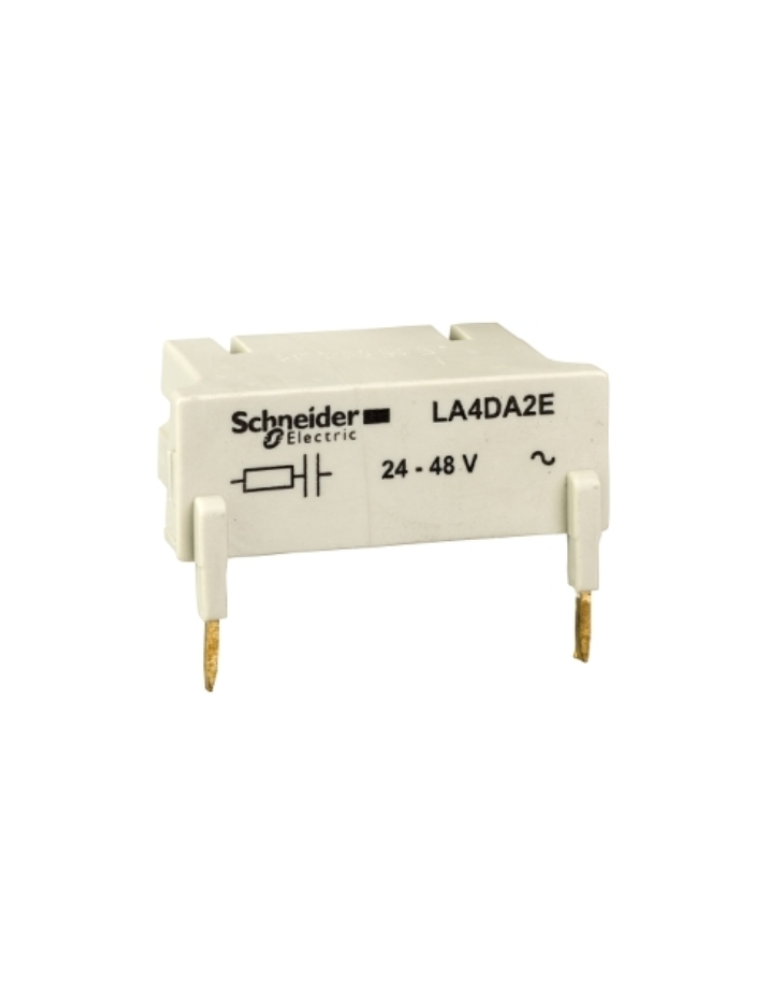

TeSys D - suppressor module - RC circuit - 24...48 V AC

Rs. 2,710.00 + 18% GST Rs. 5,100.00
47
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: LA4DA2E
Visa Mastercard American Express UPI
Main
Range TeSys
Device short name LA4D
Product or component type Suppressor module
Product compatibility 3P LC1D80...D150
4P LC1D80004...D115004
4P LC1D40008...D80008
Complementary
Mounting location Top
Mounting mode By screws
Suppressor technology RC circuit
[Uc] control circuit voltage 24...48 V AC 50/60 Hz
Maximum peak voltage 3 Uc
Product weight 0.018 kg
Environment
Standards IEC 60947-5-1
EN 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
Product certifications UL
CSA
IP degree of protection IP2X conforming to IEC 60529
Ambient air temperature for operation -25…55 °C
Ambient air temperature for storage -40…80 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 2.700 cm
Package 1 Length 4.100 cm
Package 1 Weight 22.000 g
Unit Type of Package 2 S01
Number of Units in Package 2 78
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.880 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku LA4DA2E
Weight 0.4 kg
