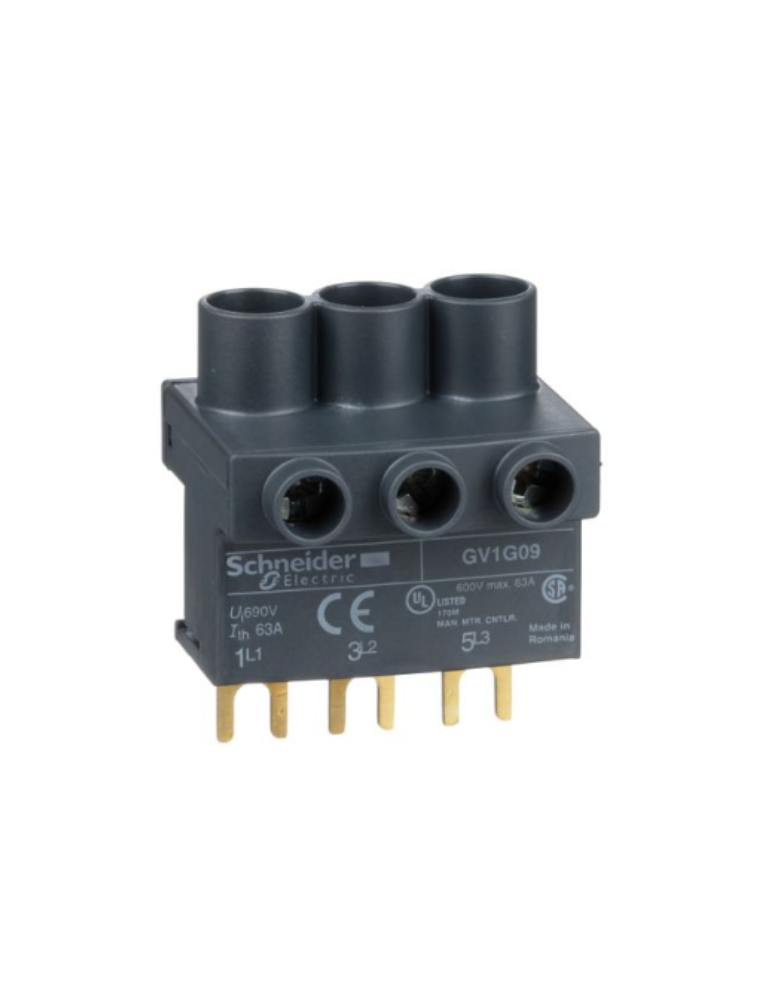

TeSys GV, top feed terminal block, for busbars, 3 P, for TeSys D and TeSys U

Rs. 3,445.00 + 18% GST Rs. 7,000.00
51
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: GV1G09
Visa Mastercard American Express UPI
Main
Range Linergy
Product name FT
Device short name GV1G
Product or Component Type Terminal block
Accessory / separate part category Connection accessory
Poles description 3P
Range compatibility TeSys GV2
TeSys Deca
TeSys U
TeSys LS1
Complementary
[Ie] rated operational current 63 A
Mounting Location Top
IP degree of protection IP20 conforming to IEC 60529
[Ui] rated insulation voltage 690 V IEC 60947-1
Connections - terminals Screw clamp terminals 1 cable(s) (AWG 4) - solid
Screw clamp terminals 1 cable(s) 0.002…0.02 in² (1.5…16 mm²) - flexible with cable end
Screw clamp terminals 1 cable(s) 0.002…0.02 in² (1.5…16 mm²) - flexible without cable end
Screw clamp terminals 1 cable(s) 0.002…0.04 in² (1.5…25 mm²) - solid
Screw clamp terminals 2 cable(s) 0.002…0.006 in² (1.5…4 mm²) - flexible with cable end
Screw clamp terminals 2 cable(s) 0.002…0.009 in² (1.5…6 mm²) - solid
Screw clamp terminals 2 cable(s) 0.002…0.006 in² (1.5…4 mm²) - flexible without cable end
Screw clamp terminals 1 cable(s) (AWG 4) - flexible
Tightening torque 15.05 lbf.in (1.7 N.m) screw clamp terminals
19.5 lbf.in (2.2 N.m) connector
Product Weight 0.09 lb(US) (0.04 kg)
Environment
Product Certifications CE
UKCA
Ordering and shipping details
Category US10I1122366
Discount Schedule 0I11
GTIN 3389110212570
Returnability Yes
Country of origin RO
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 1.772 in (4.500 cm)
Package 1 Width 2.362 in (6.000 cm)
Package 1 Length 2.756 in (7.000 cm)
Package weight(Lbs) 1.728 oz (49.000 g)
Unit Type of Package 2 S02
Number of Units in Package 2 70
Package 2 Height 5.906 in (15.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 8.170 lb(US) (3.706 kg)
Unit Type of Package 3 P06
Number of Units in Package 3 1120
Package 3 Height 29.528 in (75.000 cm)
Package 3 Width 23.622 in (60.000 cm)
Package 3 Length 31.496 in (80.000 cm)
Package 3 Weight 153.310 lb(US) (69.540 kg)
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku GV1G09
Weight 0.04 kg
