| Range | Linergy |
|---|---|
| Product name | FT |

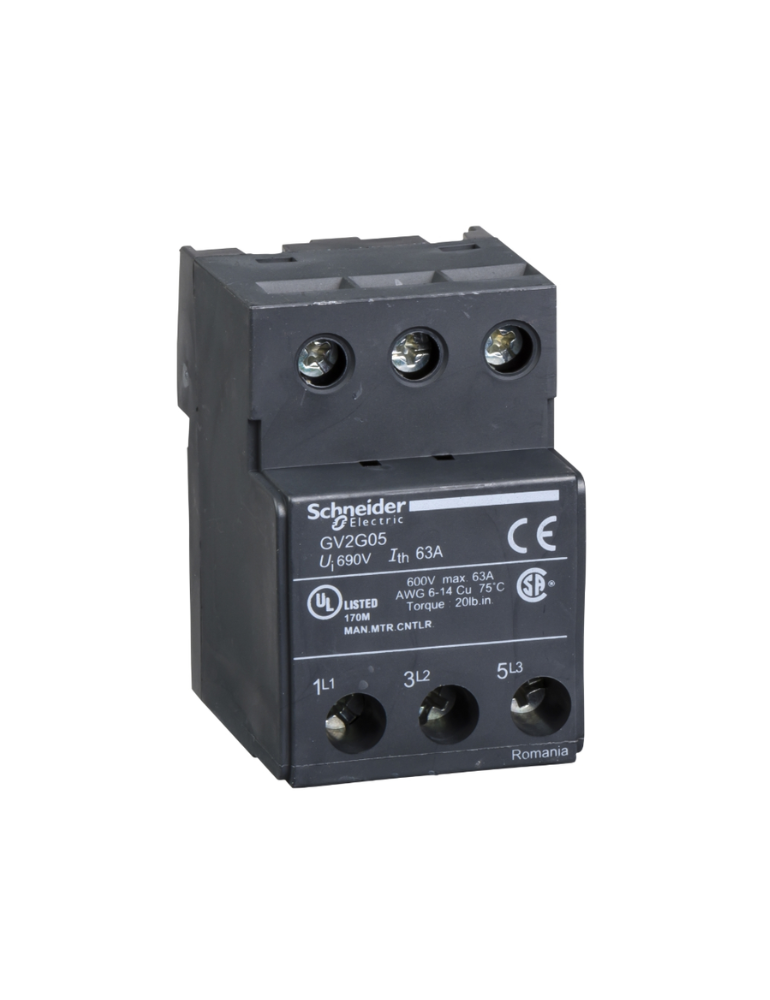

| Device short name | GV2G |
| Product or component type | Terminal block |
| Accessory / separate part category | Connection accessory |
| Poles description | 3P |
| Range compatibility | TeSys GV2 TeSys Deca TeSys K TeSys U |
| [Ie] rated operational current | 63 A |
|---|---|
| Mounting location | 35 mm DIN rail |
| IP degree of protection | IP20 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 |
| Connections - terminals | Screw clamp terminals 1 cable(s) (AWG 4) - solid Screw clamp terminals 1 cable(s) 1.5…16 mm² - flexible with cable end Screw clamp terminals 1 cable(s) 1.5…16 mm² - flexible without cable end Screw clamp terminals 1 cable(s) 1.5…25 mm² - solid Screw clamp terminals 2 cable(s) 1.5…4 mm² - flexible with cable end Screw clamp terminals 2 cable(s) 1.5…6 mm² - solid Screw clamp terminals 2 cable(s) 2.5…4 mm² - flexible without cable end Screw clamp terminals 1 cable(s) (AWG 4) - flexible |
| Tightening torque | 1.7 N.m - on screw clamp terminals 2.2 N.m - on connector |
| Product weight | 0.115 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 120.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.009 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 640 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 93.220 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | GV2G05 |
| Weight | 0.4 kg |
