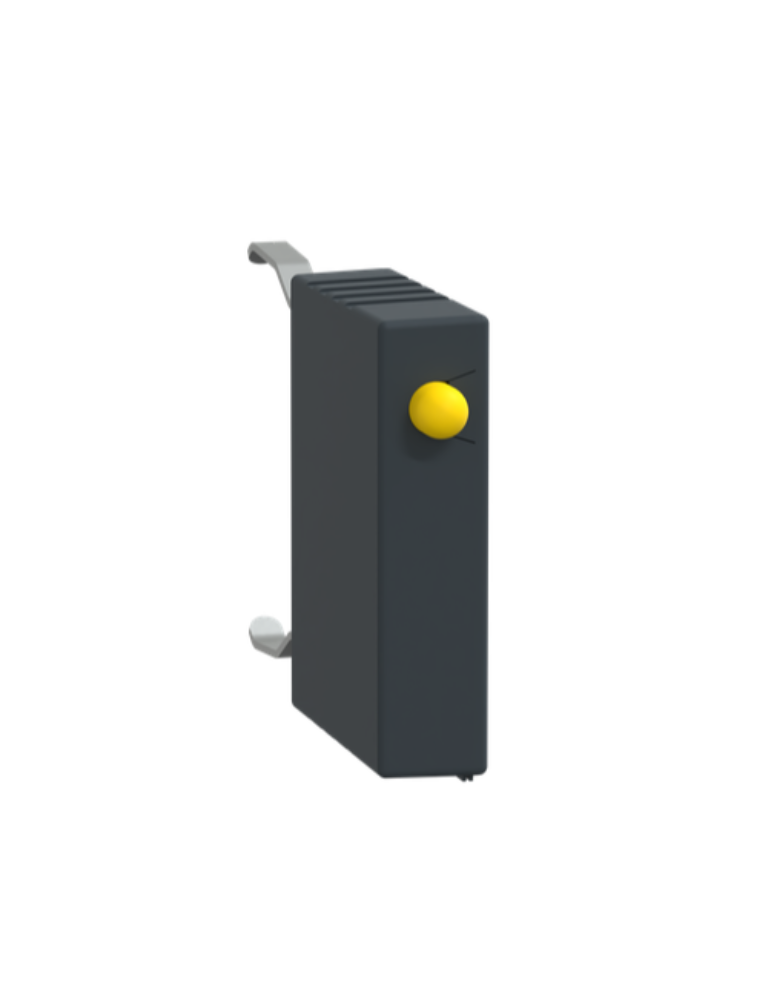

TeSys K - Suppressor module - RC circuit - 110...250 V

Rs. 1,690.00 + 18% GST
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: LA4KA1U
Visa Mastercard American Express UPI
Main
Range TeSys
Device short name LA4K
Product or component type Suppressor module
Product compatibility CA2K
LC1K
LC7K
Complementary
Mounting location Front side
Mounting mode Clip-on
Suppressor technology RC circuit
[Uc] control circuit voltage 110...250 V AC
Maximum peak voltage 3 Uc
Local signalling LED
Quantity per set Set of 5
Height 26 mm
Width 6 mm
Depth 22 mm
Product weight 0.01 kg
Environment
Standards UL 60947-5-1
CSA C22.2 No 60947-5-1
EN/IEC 60947-5-1
Product certifications UL
CSA
CE
UKCA
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TC conforming to IEC 60068
TC conforming to DIN 50016
Ambient air temperature for operation -25…50 °C
Ambient air temperature for storage -50…80 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 0.800 cm
Package 1 Width 2.800 cm
Package 1 Length 4.200 cm
Package 1 Weight 4.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 2.800 cm
Package 2 Width 5.200 cm
Package 2 Length 4.300 cm
Package 2 Weight 27.000 g
Unit Type of Package 3 S01
Number of Units in Package 3 420
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.672 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku LA4KA1U
Weight 0.3 kg
