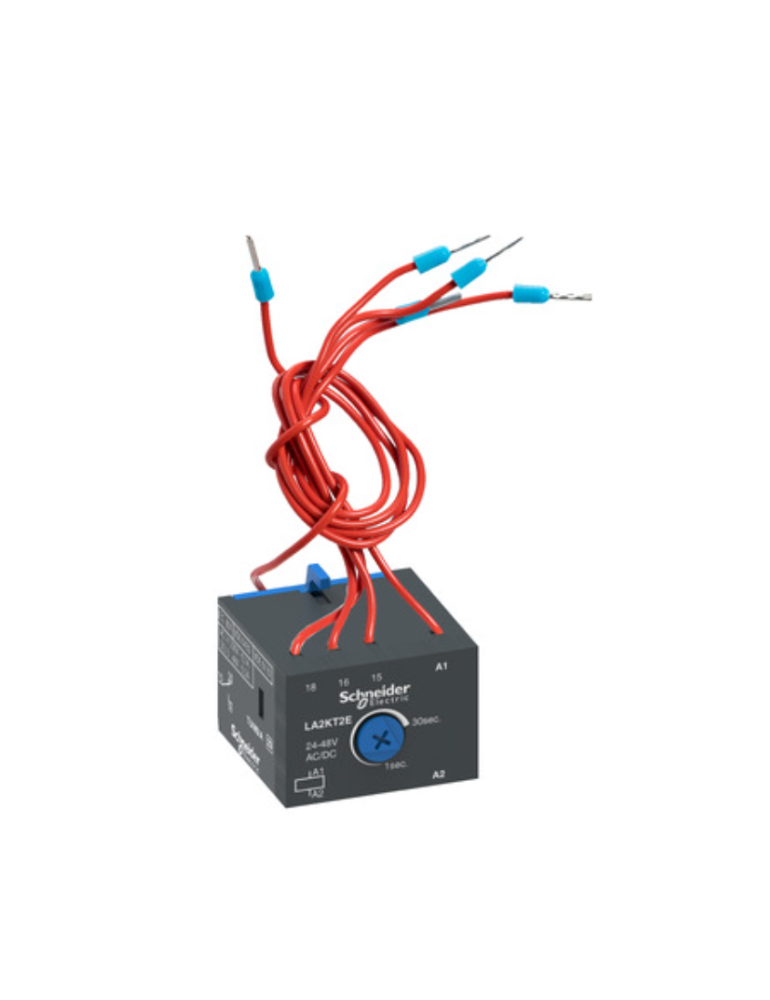

TeSys K -Time delay auxiliary contact block - 1 C/O - 24...48 V - 1…30s

Rs. 6,445.00 + 18% GST Rs. 9,999.00
36
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: LA2KT2E
Visa Mastercard American Express UPI
Main
Range TeSys
Product name TeSys K
Product or component type Time delay auxiliary contact block
Device short name LA1
Range compatibility TeSys K LC1K
TeSys K CA2K
TeSys K CA3K
TeSys K CA4K
Mounting location Front
Pole contact composition 1 C/O
Contacts operation Time delay
Timer type On delay
Time delay range 1...30 s
[Ue] rated operational voltage 24...48 V AC/DC for control circuit
240 V AC for signalling circuit
Rated operational voltage limits 0.85...1.1 Uc
[Ith] conventional free air thermal current 2 A for signalling circuit
Standards EN/IEC 60947-5-1
Product certifications CE
UKCA
Complementary
Insulation resistance > 10 MOhm
Connections - terminals Slip-on terminals
Reset time 1.5 s during time delay
0.5 s after time delay
Height 27 mm
Width 38 mm
Depth 38 mm
Product weight 0.04 kg
Environment
Environmental characteristic Normal environment
IP degree of protection IP20 conforming to IEC 60529
Protective treatment TC conforming to IEC 60068
Ambient air temperature for operation -10…60 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 4.800 cm
Package 1 Length 4.800 cm
Package 1 Weight 40.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 70
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.110 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku LA2KT2E
Weight 0.2 kg
