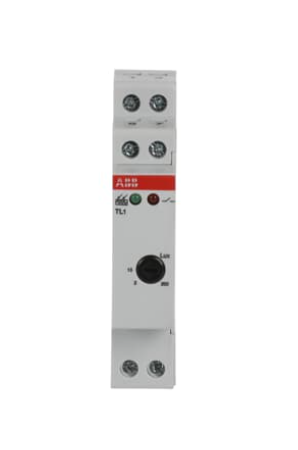

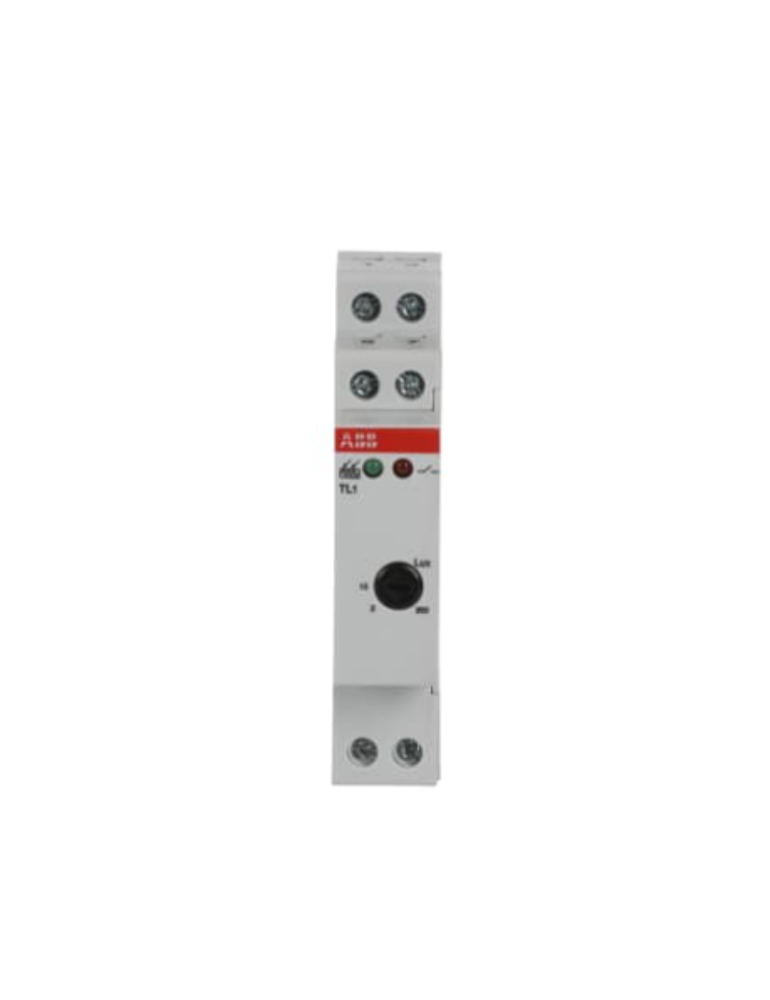

TL1

Rs. 12,970.00 + 18% GST Rs. 24,000.00
46
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 2CSM229921R1341
Visa Mastercard American Express UPI
Function:
Twilight
Power Supply:
110 ... 230 V AC
Number of Channels:
1
Tightening Torque:
1.2 N·m
Delay Time (τ):
On 20.7 ... 25.3 s
Off 20.7 ... 25.3 s
Illuminance:
2 … 200 lx
Contact Type:
Normally Open (NO)
Lamp Type:
LED
Meter Type:
Analog
Screw Type:
PZ1
Lamp Color:
Red / Green
Number of Batteries:
0
Cable Length:
100 m
Connecting Capacity:
Solid 6 mm²
Terminal Type:
Screw Terminals

Electrical

Supply Voltage:
110 ... 230 V AC
Rated Frequency (f):
50 ... 60 Hz
Maximum Switching Power:
1000 W
300 W
300 W
100 W
Power Consumption (@Pcons):
0.4 W
0.9 W
Power Loss:
Total 0.9 W

Design

Color:
White

Material Compliance

RoHS Information:
Following EU Directive 2011/65/EU
RoHS Date:
20200203
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240429
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Environmental

Ambient Air Temperature:
Operation -25 ... 55 °C
Storage -40 ... 70 °C
Degree of Protection:
Housing IP20

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
17.5 mm
Product Net Height:
86 mm
Product Net Depth / Length:
65 mm
Product Net Weight:
155 g

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.187 kg
E-Number (Finland):
2619404
E-Number (Norway):
1415688
E-Number (Sweden):
1301374

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Wiring Diagram:
Mounting Type:
DIN-Rail

Popular Downloads

External Classifications and Standards

ETIM 9:
EC000189 - Twilight switch
ETIM 10:
EC000189 - Twilight switch
UNSPSC:
39122214
eClass:
V11.0 : 27144011
IDEA Granular Category Code (IGCC):
5208 >> Controller switch
Object Classification Code:
K
Standards:
EN 60669-1 EN 60662-2-1 EN 60730-1
Vendor INDUSWELL
Type Industrial & Scientific
Sku 2CSM229921R1341
Weight 0.155 kg
