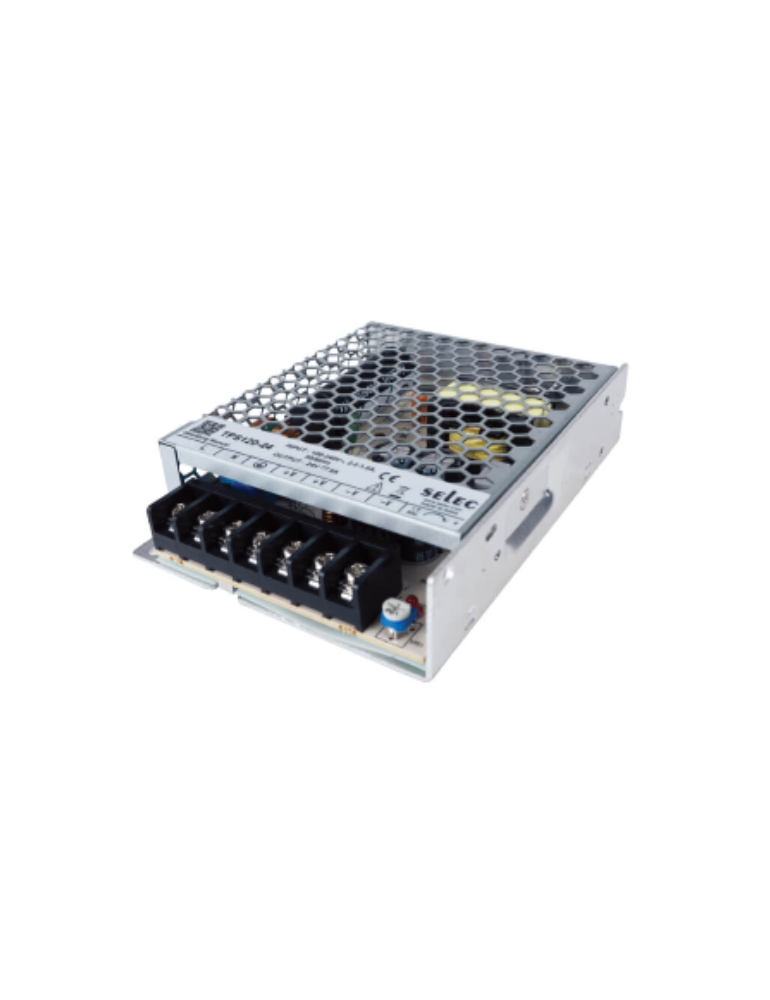

TPS120-24 PANEL MOUNT 120W POWER SUPPLY

Rs. 1,882.00 + 18% GST Rs. 3,200.00
41
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: TPS120-24
Visa Mastercard American Express UPI
Input Voltage 90 - 264 VAC (127- 373 VDC)
Frequency Range 47 - 63 Hz
Inrush Current < 60 Amps; Measured at 264 VAC, 25°C Ambient, Cold start
Output Voltage 24V
Output Power 120 W
Voltage Tolerance ± 1 %
Line Regulation ± 1 %
Load Regulation ± 1 %
Turn On Time < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load
Hold Up Time ≥ 60 ms at 230 VAC & ≥ 10 ms at 115 VAC, Full load
Rise Time < 100 ms
Overload Protection > 110 % of rated output current; Hiccup mode; Autorecovery type
Output Short Circuit Protection Hiccup mode when output is shorted; Autorecovery type
Operating Temperature - 40°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C,
- 40°C to 0°C startup is guaranteed with spec deviation ( Output ripple can be more than 10 % of the output voltage. )
Storage Temperature -40°C to +85°C
Cooling Natural Convection Cooled
Humidity 5 to 95 % RH, Non condensing
Altitude 2000 m
Dimension 129 x 97 x 30 mm (L x W x H)
Weight < 340 gms
Mounting

Table Top



Vendor INDUSWELL
Type Industrial & Scientific
Sku TPS120-24
Weight 0.3 kg
