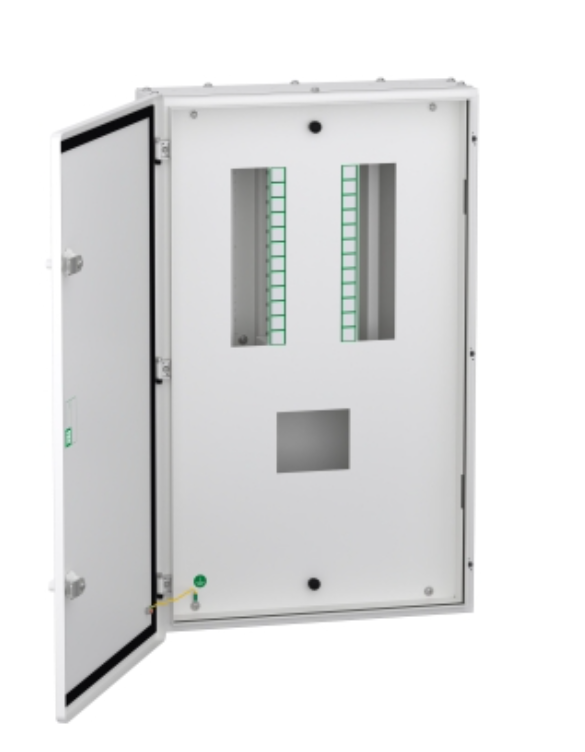

VTPN Distribution board, Easy9, 8 ways, 250A MCCB, double door metal, IP43

Rs. 20,809.00 + 18% GST Rs. 40,000.00
48
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: EZ9EVN08H
Visa Mastercard American Express UPI
Main
Range Easy9
Product name VTPN
Device application Distribution
Product or component type Enclosure
Provided equipment removable gland plates
removable centre plates
earthing bar
neutral bar
fishbone busbar
busbar link
cable shroud
neutral terminal block
Complementary
Enclosure mounting Flush
Surface
Total number of 18 mm modules 24
Number of ways 8 ways
Enclosure material Powder coated sheet steel
Protection device type Molded case circuit breaker (MCCB) 3P or 4P 250 A main incomer
Miniature circuit breaker (MCB) 1P or 3P 63 A outgoer
[In] rated current 250 A
[Icw] rated short-time withstand current 25 kA for 0.5 s
[Ui] rated insulation voltage 500 V
[Uimp] rated impulse withstand voltage 4 kV
Enclosure/cubicle description Double door enclosure
Door type Plain
Door opening side Reversible
Net weight 17.5 kg
Height External: 667 mm
Width External: 416 mm
Depth External : 139 mm
Colour White (RAL 9003)
Environment
Standards IEC 61439-3
IP degree of protection IP43
IK degree of protection IK09
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15 cm
Package 1 Width 44 cm
Package 1 Length 69 cm
Package 1 Weight 17.5 kg
Contractual warranty
Warranty (in months) 18

Vendor INDUSWELL
Type Industrial & Scientific
Sku EZ9EVN08H
Weight 0.8 kg
