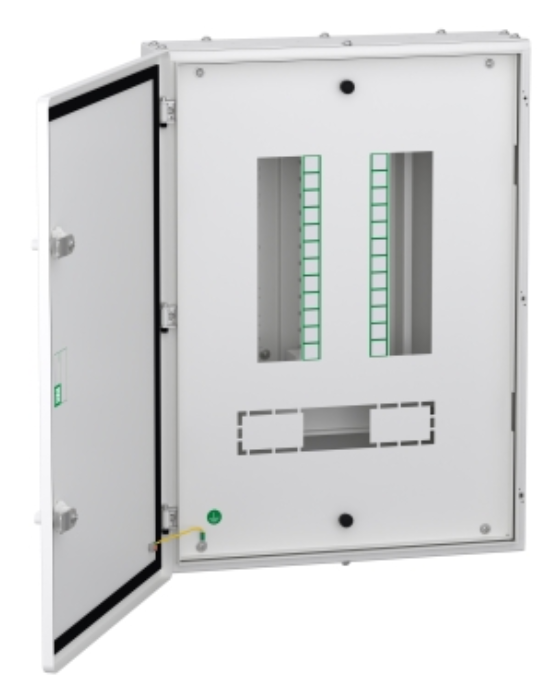

VTPN Distribution board, Easy9, 8 ways, Modular i-c 63A, double door metal, IP43

Rs. 16,180.00 + 18% GST Rs. 33,000.00
51
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: EZ9EVM08
Visa Mastercard American Express UPI
Main
Range Easy9
Product name VTPN
Device application Distribution
Product or component type Enclosure
Provided equipment removable gland plates
removable centre plates
earthing bar
neutral bar
fishbone busbar
busbar link
cable shroud
neutral terminal block
Complementary
Enclosure mounting Flush
Surface
Total number of 18 mm modules 24
Number of ways 8 ways
Enclosure material Powder coated sheet steel
Protection device type Isolator 3P or 4P 63 A main incomer
Miniature circuit breaker (MCB) 3P or 4P 63 A main incomer
Residual current circuit breaker (RCCB) 3P or 4P 63 A main incomer
Residual current circuit breaker with overcurrent protection (RCBO) 3P or 4P 63 A main incomer
Miniature circuit breaker (MCB) 1P or 3P 63 A outgoer
[In] rated current 63 A
[Icw] rated short-time withstand current 17 kA for 0.25 s
[Ui] rated insulation voltage 500 V
[Uimp] rated impulse withstand voltage 4 kV
Enclosure/cubicle description Double door enclosure
Door type Plain
Door opening side Reversible
Net weight 13 kg
Height External: 558 mm
Width External: 416 mm
Depth External : 119 mm
Colour White (RAL 9003)
Environment
Standards IEC 61439-3
IP degree of protection IP43
IK degree of protection IK09
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 13 cm
Package 1 Width 44 cm
Package 1 Length 59 cm
Package 1 Weight 13 kg
Contractual warranty
Warranty (in months) 18

Vendor INDUSWELL
Type Industrial & Scientific
Sku EZ9EVM08
Weight 0.5 kg
