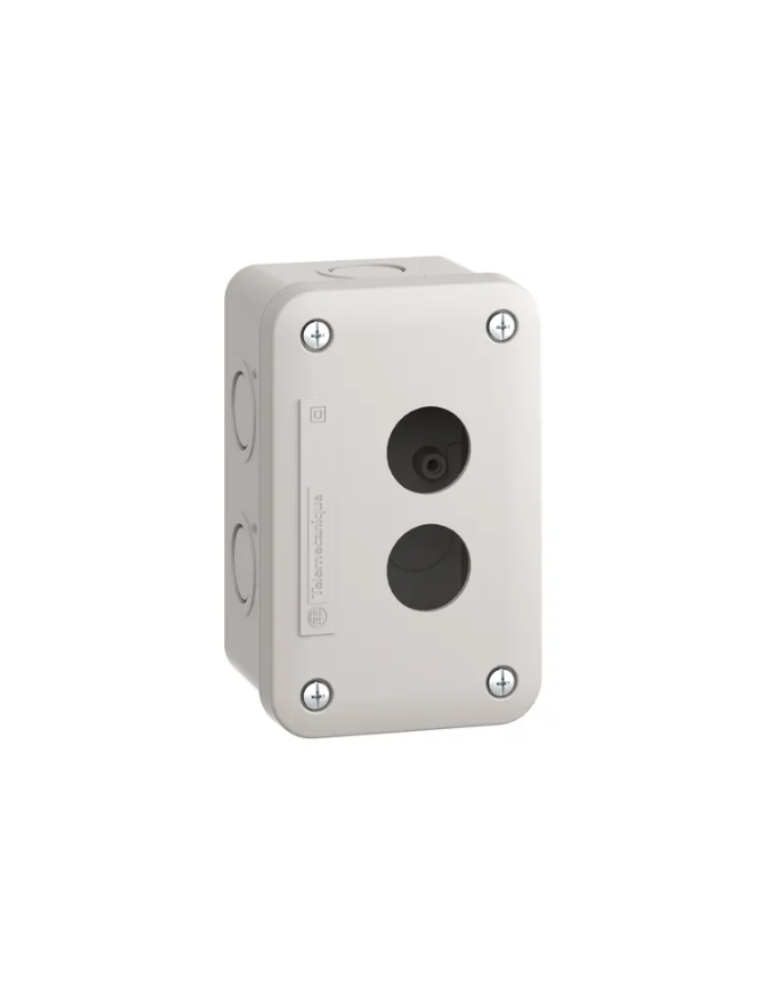

XALE2 Product picture Schneider Electric XALE_MI_BN_V1-0_EN + 7 + 7 3 videos empty control station - light grey - 2 cut-outs - IP54 - for XB7 Ø 22 mm

Rs. 759.00 + 18% GST
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: XALE2
Visa Mastercard American Express UPI
Main
Range of product Harmony XALE
Product or component type Empty control station
Device short name XALE
Product destination For XB7 Ø 22 mm control and signalling units
Number of cut-out 2 cut-outs
Colour of base of enclosure Light grey (RAL 7035)
Colour of cover Light grey (RAL 7035)
Material ABS (acrylonitrile butadiene-styrene)
Cable entry 2 knock-outs, clamping capacity: 20 mm
6 knock-outs for ISO M20
Sale per indivisible quantity 5
IP degree of protection IP54 conforming to IEC 60529
Complementary
Assembly style For customer assembly
Product weight 0.1 kg
Marking CE
Environment
Protective treatment TC
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -25…55 °C
Electrical shock protection class Class II conforming to IEC 60536
IK degree of protection IK05 conforming to IEC 62262
Standards IEC 60947-1
IEC 60947-5-1
IEC 62208
IEC 60947-5-5
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 7.500 cm
Package 1 Length 11.500 cm
Package 1 Weight 94.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 8.300 cm
Package 2 Width 12.500 cm
Package 2 Length 33.300 cm
Package 2 Weight 553.000 g
Unit Type of Package 3 S03
Number of Units in Package 3 30
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 3.741 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku XALE2
Weight 0.2 kg
