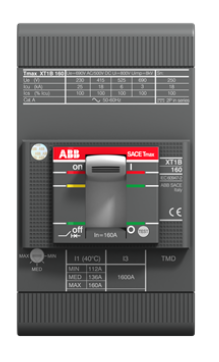

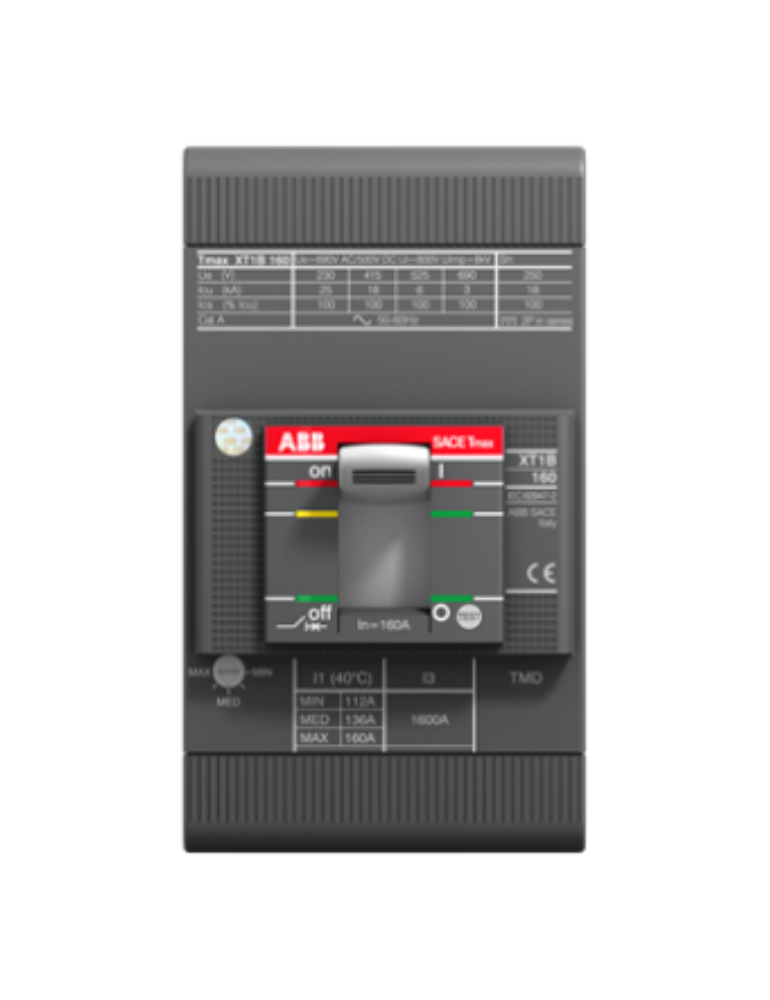

XT1H 160 TMD 32-450 3p

Rs. 22,120.00 + 18% GST Rs. 25,000.00
12
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 1SDA080838R1
Visa Mastercard American Express UPI

Ordering

Order Code US and Canada:
XT1HE3032AFF000XXX
E-Number (Norway):
4379215
EAN:
8015644873660
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
76.2 mm
Product Net Height:
130 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
1 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
128 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
143 mm
Package Level 1 Gross Weight:
1.1 kg
Package Level 1 EAN:
8015644873660

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
Number of Poles:
3P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
6.3 W
Rated Current (In):
160 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
450 A
Rated Insulation Voltage (Ui):
800 V
Rated Operational Voltage:
690 V
Vendor INDUSWELL
Type Industrial & Scientific
Sku 1SDA080838R1
Weight 0.45 kg
