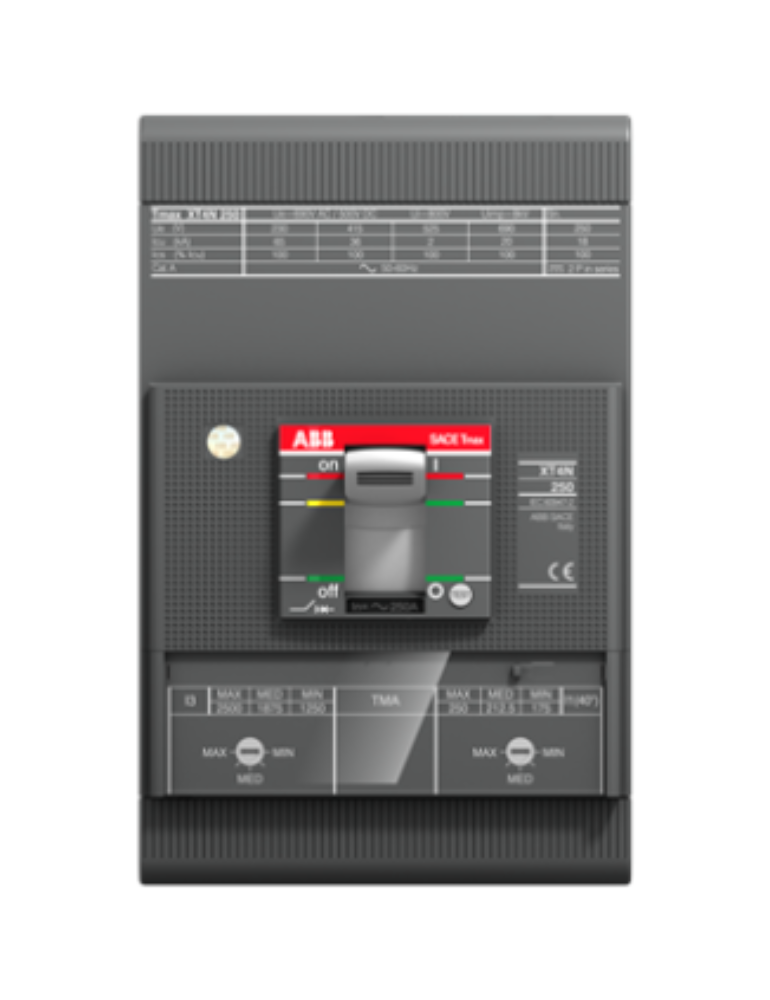

XT4N 250 TMA 250-2500 3p

Rs. 46,430.00 + 18% GST Rs. 49,000.00
5
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: 1SDA068092R1
Visa Mastercard American Express UPI

Ordering

Order Code US and Canada:
XT4NE3250BFF000XXX
E-Number (Finland):
3638621
E-Number (Norway):
4379857
EAN:
8015644695835
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
105 mm
Product Net Height:
160 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
2.252 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
151 mm
Package Level 1 Height:
214 mm
Package Level 1 Depth / Length:
171 mm
Package Level 1 Gross Weight:
2.38 kg
Package Level 1 EAN:
8015644695835

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Version:
F
CAD Dimensional Drawing:

Technical

Connecting Capacity Main Circuit:
Busbar 85..200 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
Number of Poles:
3P
Opening Time:
CB with SOR 30 ms
CB with UVR 30 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 16.44 W
Rated Current (In):
250 A
Rated Frequency (f):
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
1250…2500 A
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
750 V DC
Vendor INDUSWELL
Type Industrial & Scientific
Sku 1SDA068092R1
Weight 0.45 kg
